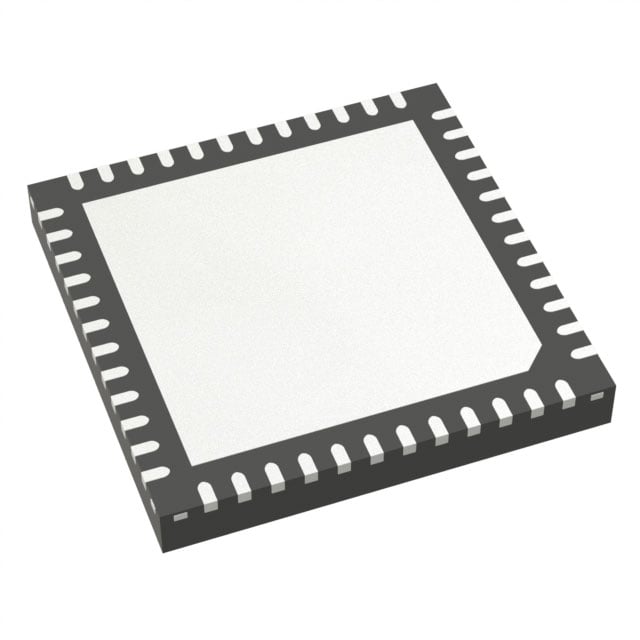

STM8L151C8U6TR ST Microcontroller | 48-UFQFPN (7x7) | 64KB Flash, 4KB RAM

Product Overview

The STM8L151C8U6TR is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L series. It features a high-performance STM8 core operating at up to 16 MHz, with 64 KB of Flash memory and 4 KB of RAM. The device is housed in a compact 48-UFQFPN (7x7 mm) package, making it ideal for space-constrained applications. It offers a rich set of peripherals including multiple timers, USART, SPI, I2C, and a 12-bit ADC, along with advanced power management for extended battery life.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.3 µA in Halt mode, 1 µA in Active-halt mode
• Fast wake-up from low-power modes (4.7 µs)
• Integrated 12-bit ADC with up to 25 channels
• Multiple communication interfaces: USART, SPI, I2C
• Up to 41 GPIOs with interrupt capability
• Embedded EEPROM emulation
• Clock security system with internal and external oscillators
• Single-wire debug interface (SWIM)

Target Applications

The STM8L151C8U6TR is designed for a wide range of low-power and cost-sensitive applications, including:

• Portable medical devices (e.g., blood glucose meters, thermometers)
• Smart sensors and IoT endpoints (e.g., temperature/humidity sensors, smart locks)
• Battery-powered consumer electronics (e.g., remote controls, wearable devices)
• Industrial control systems (e.g., motor control, PLC I/O modules)
• Automotive body electronics (e.g., window lift, seat control modules)
• Smart home devices (e.g., smart thermostats, lighting controllers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L151C8U6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8L151C8U6TR 是意法半導體（STMicroelectronics）推出的超低功耗8位微控制器，屬於STM8L系列。它採用高性能STM8內核，最高工作頻率16 MHz，配備64 KB Flash存儲器和4 KB RAM。器件採用緊湊的48-UFQFPN（7x7 mm）封裝，適合空間受限的應用。它提供豐富的外設，包括多個定時器、USART、SPI、I2C和12位ADC，並具有先進的電源管理功能，可延長電池壽命。

詳細技術參數

核心特性

• 超低功耗：停機模式0.3 µA，活躍停機模式1 µA
• 從低功耗模式快速喚醒（4.7 µs）
• 集成12位ADC，最多25通道
• 多種通信接口：USART、SPI、I2C
• 最多41個GPIO，支持中斷
• 嵌入式EEPROM仿真
• 時鐘安全系統，支持內部與外部振盪器
• 單線調試接口（SWIM）

典型應用場景

STM8L151C8U6TR 適用於多種低功耗和成本敏感的應用，包括：

• 便攜式醫療設備（如血糖儀、體溫計）
• 智能傳感器和物聯網終端（如溫濕度傳感器、智能鎖）
• 電池供電的消費電子產品（如遙控器、可穿戴設備）
• 工業控制系統（如電機控制、PLC I/O模塊）
• 汽車車身電子（如車窗升降、座椅控制模塊）
• 智能家居設備（如智能恆溫器、照明控制器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8L151C8U6TR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
