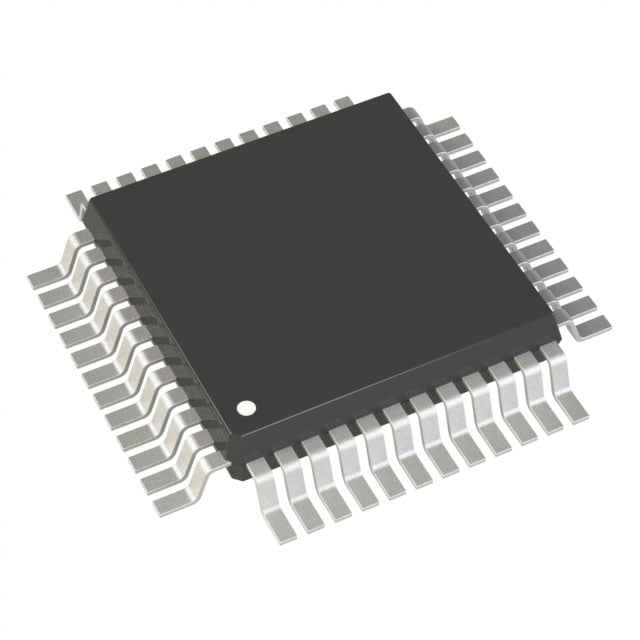

STM8L152K4T6 ST Microcontroller | 32-LQFP (7x7) | 16MHz, 16KB Flash

Product Overview

The STM8L152K4T6 is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L series. It features a high-performance STM8 core operating at up to 16 MHz, 16 KB of Flash memory, 2 KB of RAM, and 1 KB of EEPROM. The device is housed in a compact 32-pin LQFP package (7x7 mm), making it ideal for space-constrained applications. It offers a rich set of peripherals including multiple timers, USART, SPI, I2C, and a 12-bit ADC, along with advanced low-power modes for battery-powered designs.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.35 µA in Halt mode, 1 µA in Active-Halt mode
• Fast wake-up from low-power modes (4.7 µs)
• Integrated EEPROM with up to 100k write/erase cycles
• Embedded bootloader for easy programming
• Robust I/O with 5V tolerance
• Single-wire debug interface (SWIM)

Target Applications

• Industrial sensor nodes and data loggers
• Portable medical devices (e.g., blood glucose meters)
• Smart home controllers (e.g., thermostat, lighting)
• Battery-powered IoT endpoints
• Consumer electronics (e.g., remote controls, wearables)
• Automotive body electronics (e.g., window lift, seat control)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L152K4T6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8L152K4T6 是意法半導體（STMicroelectronics）推出的超低功耗8位微控制器，屬於 STM8L 系列。它採用高性能 STM8 內核，最高工作頻率 16 MHz，內置 16 KB Flash、2 KB RAM 和 1 KB EEPROM。器件採用緊湊的 32 引腳 LQFP 封裝（7x7 mm），適合空間受限的應用。它提供豐富的外設，包括多個定時器、USART、SPI、I2C 和 12 位 ADC，並具有先進的低功耗模式，適用於電池供電設計。

詳細技術參數

核心特性

• 超低功耗：暫停模式 0.35 µA，活躍暫停模式 1 µA
• 從低功耗模式快速喚醒（4.7 µs）
• 集成 EEPROM，支持高達 10 萬次擦寫
• 內置引導加載器，便於編程
• 強健的 I/O，支持 5V 耐受
• 單線調試接口（SWIM）

典型應用場景

• 工業傳感器節點和數據記錄器
• 便攜式醫療設備（如血糖儀）
• 智能家居控制器（如恆溫器、照明）
• 電池供電的物聯網終端
• 消費電子（如遙控器、可穿戴設備）
• 汽車車身電子（如車窗升降、座椅控制）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8L152K4T6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
