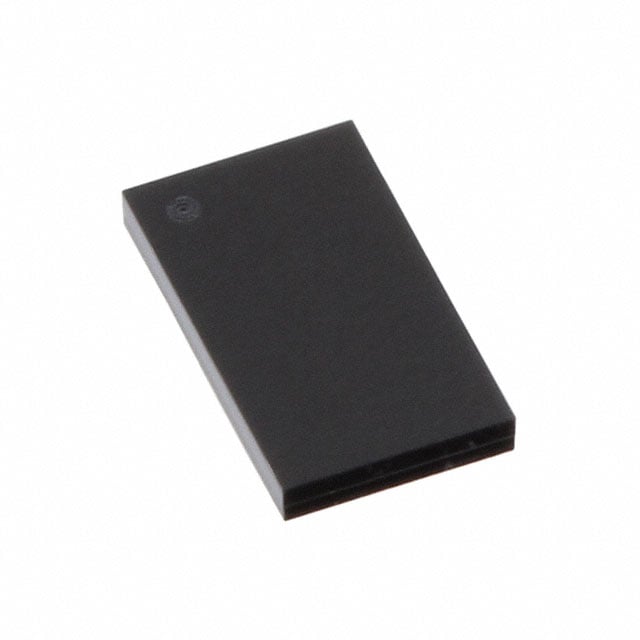

STM8L152K8Y6TR ST Microcontrollers | 8-bit, 64KB Flash, 4KB RAM

Product Overview

The STM8L152K8Y6TR is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L series. It features a high-performance STM8 core operating at up to 16 MHz, 64 KB of Flash memory, 4 KB of RAM, and 2 KB of EEPROM. The device is designed for applications requiring low power consumption and rich analog peripherals, including a 12-bit ADC, DAC, comparators, and an LCD driver. It operates from 1.8V to 3.6V and offers multiple low-power modes, making it ideal for battery-powered and energy-sensitive applications.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.3 µA in Halt mode, 1 µA in Active-halt mode
• Rich analog peripherals: 12-bit ADC, DAC, comparators, and LCD driver
• Up to 28 GPIOs with interrupt capability
• Embedded EEPROM for data storage
• Multiple communication interfaces: SPI, I2C, USART
• Clock security system and watchdog timer
• Single-wire debug interface (SWIM)

Target Applications

The STM8L152K8Y6TR is suitable for a wide range of applications, including:

• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Smart meters and energy harvesting systems
• Industrial sensors and actuators
• Consumer electronics (e.g., remote controls, smart watches)
• Automotive body electronics (e.g., window lift, seat control)
• 5G base station monitoring and control modules
• Dashboard displays and HMI panels

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L152K8Y6TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8L152K8Y6TR 是意法半導體（STMicroelectronics）推出的一款超低功耗8位微控制器，屬於 STM8L 系列。它採用高性能 STM8 內核，最高工作頻率 16 MHz，內置 64 KB Flash、4 KB RAM 和 2 KB EEPROM。該器件專為需要低功耗和豐富模擬外設的應用而設計，包括 12 位 ADC、DAC、比較器和 LCD 驅動器。工作電壓範圍為 1.8V 至 3.6V，支持多種低功耗模式，非常適合電池供電和對能耗敏感的應用。

詳細技術參數

核心特性

• 超低功耗：Halt 模式 0.3 µA，Active-halt 模式 1 µA
• 豐富的模擬外設：12位 ADC、DAC、比較器和 LCD 驅動器
• 最多 28 個 GPIO，支持中斷
• 內置 EEPROM 用於數據存儲
• 多種通信接口：SPI、I2C、USART
• 時鐘安全系統和看門狗定時器
• 單線調試接口 (SWIM)

典型應用場景

STM8L152K8Y6TR 適用於多種應用，包括：

• 便攜式醫療設備（如血糖儀、脈搏血氧儀）
• 智能電錶和能量採集系統
• 工業傳感器和執行器
• 消費電子（如遙控器、智能手錶）
• 汽車車身電子（如車窗升降、座椅控制）
• 5G 基站監控與控制模塊
• 儀表盤顯示和 HMI 面板

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8L152K8Y6TR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
