STM8S103F2P3TR ST Microcontroller | 20-TSSOP | 8-bit, 8KB Flash, 16MHz

Product Overview

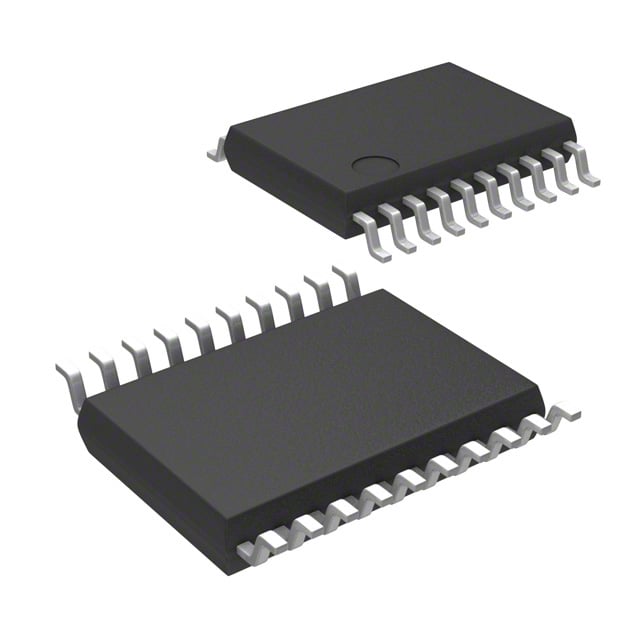

The STM8S103F2P3TR is an 8-bit microcontroller from STMicroelectronics, part of the STM8S series. It features a high-performance STM8 core operating at up to 16 MHz, 8 KB of Flash program memory, 1 KB of RAM, and 640 bytes of EEPROM. Housed in a compact 20-pin TSSOP package, it is designed for cost-sensitive applications requiring robust performance and low power consumption.

Detailed Technical Specifications

Key Features

• High-performance STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Low power modes: Wait, Active-halt, Halt
• Clock sources: Internal 16 MHz RC, external crystal, or resonator
• Reset circuit with power-on reset (POR) and brown-out reset (BOR)
• Up to 16 I/Os, all mappable on interrupt vectors
• 2x 16-bit general-purpose timers with PWM and capture/compare
• 1x 8-bit timer with prescaler
• SPI, I2C, and UART communication interfaces
• 10-bit ADC with up to 5 channels
• Embedded EEPROM with up to 100k write/erase cycles

Target Applications

The STM8S103F2P3TR is ideal for a wide range of applications including: 5G base station control modules, automotive dashboard controllers, industrial sensor interfaces, home appliance control units, battery management systems, and portable medical devices. Its small footprint and rich peripheral set make it suitable for space-constrained designs.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S103F2P3TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
