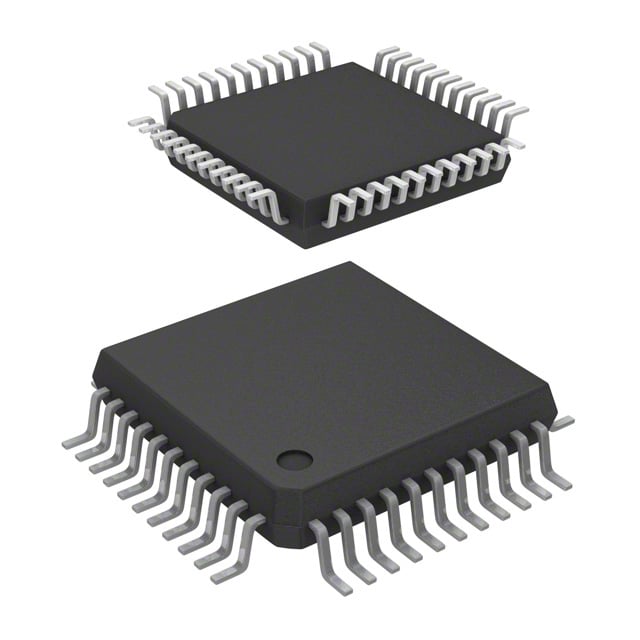

STM8S105S4T6C ST 8-bit MCU | 16MHz, 16KB Flash, 2KB RAM

Product Overview

The STM8S105S4T6C is a high-performance 8-bit microcontroller from STMicroelectronics, based on the advanced STM8 core. It operates at a frequency of up to 16 MHz and offers 16 KB of Flash program memory, 2 KB of RAM, and 1 KB of EEPROM. This device is designed for cost-sensitive applications requiring robust performance and rich peripherals.

Detailed Technical Specifications

Key Features

• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug interface (SWIM)
• Clock sources: internal 16 MHz RC, external crystal, or resonator
• Reset circuitry with power-on reset (POR), brown-out reset (BOR)
• Low power modes: Wait, Active Halt, Halt
• Dual watchdog timers (window and independent)
• Up to 38 I/Os, all mappable on interrupt vectors
• Rich analog peripherals: 10-bit ADC with internal reference
• Robust communication: SPI, I2C, UART with LIN support

Target Applications

The STM8S105S4T6C is ideal for a wide range of applications including:

• Industrial control systems (e.g., PLC modules, motor control)
• Home appliances (e.g., smart thermostats, washing machine controllers)
• Automotive aftermarket (e.g., dashboard displays, sensor interfaces)
• Consumer electronics (e.g., gaming peripherals, remote controls)
• IoT edge nodes (e.g., smart sensors, data loggers)
• 5G base station auxiliary control (e.g., power management, fan control)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S105S4T6C. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8S105S4T6C是意法半導體基於先進STM8內核的高性能8位微控制器。最高工作頻率16 MHz，提供16 KB Flash程序存儲器、2 KB RAM和1 KB EEPROM。該器件專為需要強大性能和豐富外設的成本敏感型應用而設計。

詳細技術參數

核心特性

• 先進的STM8內核，哈佛架構，3級流水線
• 16 MHz下最高16 MIPS吞吐量
• 嵌入式單線調試接口（SWIM）
• 時鐘源：內部16 MHz RC，外部晶體或諧振器
• 復位電路：上電復位（POR），欠壓復位（BOR）
• 低功耗模式：等待、活躍停機、停機
• 雙看門狗定時器（窗口和獨立）
• 最多38個I/O，均可映射中斷向量
• 豐富的模擬外設：10位ADC，內置參考電壓
• 強大的通信：SPI、I2C、UART（支持LIN）

典型應用場景

STM8S105S4T6C適用於多種應用，包括：

• 工業控制系統（如PLC模塊、電機控制）
• 家用電器（如智能恆溫器、洗衣機控制器）
• 汽車後市場（如儀表盤顯示、傳感器接口）
• 消費電子（如遊戲外設、遙控器）
• 物聯網邊緣節點（如智能傳感器、數據記錄器）
• 5G基站輔助控制（如電源管理、風扇控制）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8S105S4T6C 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
