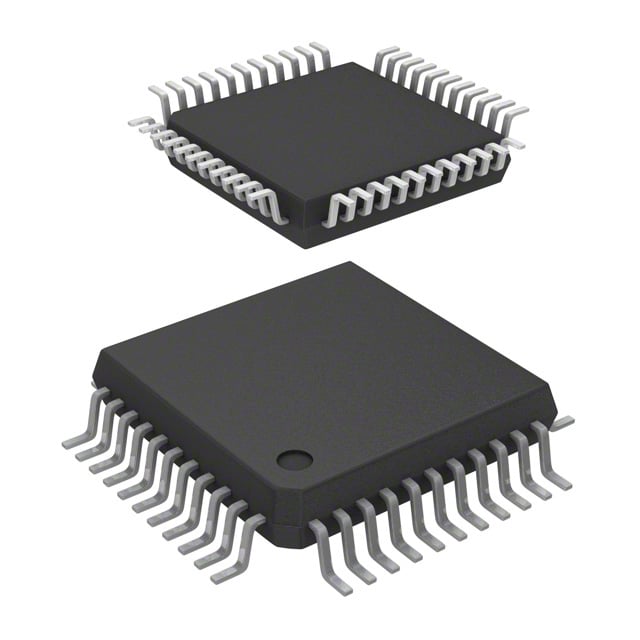

STM8S105S4T6CTR ST Microcontroller | 44-LQFP (10x10) | 16MHz, 16KB Flash

Product Overview

The STM8S105S4T6CTR is a high-performance 8-bit microcontroller from STMicroelectronics, featuring an advanced STM8 core with a 16 MHz CPU clock. It is housed in a compact 44-pin LQFP package (10x10 mm), making it suitable for space-constrained applications. With 16 KB of Flash program memory, 1 KB of RAM, and 512 bytes of EEPROM, it offers a balanced combination of processing power and memory for a wide range of embedded control tasks.

Detailed Technical Specifications

Key Features

• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Clock, reset, and supply management
• Low-power modes: Wait, Active-halt, Halt
• 10-bit ADC with up to 10 multiplexed channels
• Two 16-bit general-purpose timers with PWM capability
• One 8-bit basic timer
• SPI, I2C, and UART communication interfaces
• Up to 38 I/O pins, all mappable on interrupt vectors
• Robust ESD protection and EMI immunity

Target Applications

The STM8S105S4T6CTR is ideal for a variety of embedded control applications, including:

• Industrial control systems (e.g., PLC modules, motor control)
• Home appliances (e.g., smart washing machines, microwave ovens)
• Automotive aftermarket (e.g., dashboard controllers, sensor interfaces)
• Consumer electronics (e.g., gaming peripherals, remote controls)
• 5G base station auxiliary control (e.g., power management, fan control)
• Medical devices (e.g., portable diagnostic tools)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S105S4T6CTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
