STM8S207SBT6C ST Microcontroller | 8-bit MCU | 128KB Flash, 24MHz

Product Overview

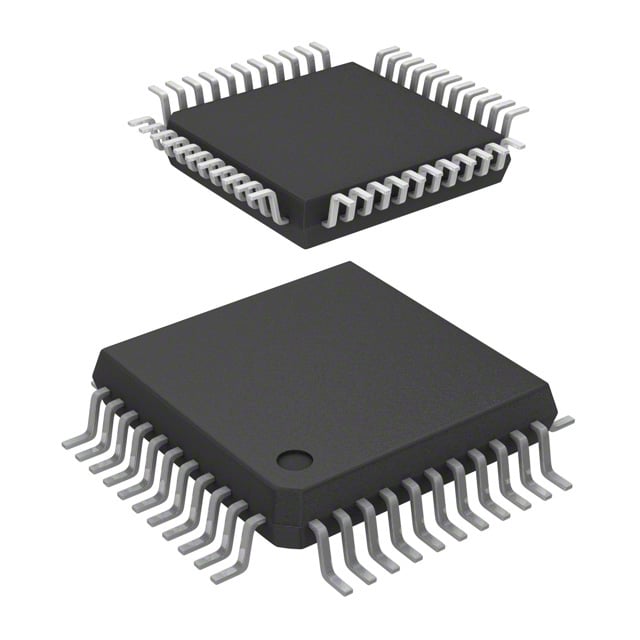

The STM8S207SBT6C is a high-performance 8-bit microcontroller from STMicroelectronics, part of the STM8S series. It features an advanced STM8 core operating at up to 24 MHz, with 128 KB of Flash program memory, 6 KB of RAM, and 2 KB of EEPROM. The device is designed for cost-sensitive applications requiring robust performance, rich peripherals, and low power consumption. It operates over a supply voltage range of 2.95 V to 5.5 V and is available in an LQFP 44-pin package.

Detailed Technical Specifications

Key Features

• High-performance STM8 core with Harvard architecture and 3-stage pipeline
• Up to 24 MHz CPU frequency
• 128 KB Flash with read-while-write capability
• 6 KB SRAM and 2 KB EEPROM
• Rich set of peripherals: SPI, I2C, UART, CAN, ADC, DAC, timers
• Up to 38 I/O pins with programmable pull-up and interrupt capability
• Low power consumption: 0.5 µA in Halt mode
• Embedded bootloader for easy programming
• Single-wire debug interface (SWIM)
• Operating temperature range: -40°C to +85°C

Target Applications

The STM8S207SBT6C is ideal for a wide range of applications including:

• Industrial control systems (e.g., PLCs, motor drives)
• Automotive electronics (e.g., dashboard controllers, sensor modules)
• Consumer electronics (e.g., smart home devices, remote controls)
• Communication infrastructure (e.g., 5G base station power management)
• Medical devices (e.g., portable diagnostic equipment)
• Power tools and battery management systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8S207SBT6C. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM8S207SBT6C 是意法半導體（STMicroelectronics）推出的一款高性能8位微控制器，屬於STM8S系列。它採用先進的STM8內核，最高工作頻率可達24 MHz，配備128 KB的Flash程序存儲器、6 KB的RAM和2 KB的EEPROM。該器件專為成本敏感的應用而設計，具有強大的性能、豐富的外設和低功耗特性。工作電壓範圍為2.95 V至5.5 V，採用LQFP 44引腳封裝。

詳細技術參數

核心特性

• 高性能STM8內核，採用哈佛架構和3級流水線
• 最高24 MHz CPU頻率
• 128 KB Flash，支持讀-寫-同時操作
• 6 KB SRAM 和 2 KB EEPROM
• 豐富的外設：SPI、I2C、UART、CAN、ADC、DAC、定時器
• 最多38個I/O引腳，可編程上拉和中斷功能
• 低功耗：停機模式僅0.5 µA
• 內置引導加載器，便於編程
• 單線調試接口（SWIM）
• 工作溫度範圍：-40°C 至 +85°C

典型應用場景

STM8S207SBT6C 適用於多種應用，包括：

• 工業控制系統（例如PLC、電機驅動）
• 汽車電子（例如儀表盤控制器、傳感器模塊）
• 消費電子（例如智能家居設備、遙控器）
• 通信基礎設施（例如5G基站電源管理）
• 醫療設備（例如便攜式診斷設備）
• 電動工具和電池管理系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM8S207SBT6C 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
