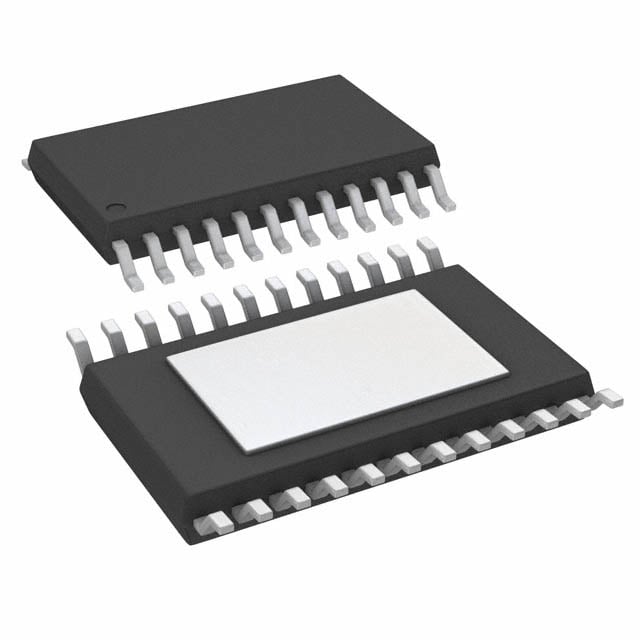

STP16CP05XTTR ST LED Driver | 24-TSSOP-EP | 16-bit, 5V, 30mA

Product Overview

The STP16CP05XTTR is a monolithic, low-voltage, 16-bit constant current LED sink driver from STMicroelectronics. It is designed for applications requiring high precision and reliability, such as signage, automotive lighting, and industrial displays. The device integrates a 16-bit shift register and data latches, allowing serial data input and parallel output control. With a maximum output current of 30 mA per channel and a supply voltage range of 3V to 5.5V, it is ideal for driving multiple LEDs in series or parallel configurations. The package is a 24-TSSOP-EP (exposed pad) for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• 16 constant-current output channels
• Output current adjustable via external resistor
• 3.3V and 5V compatible logic inputs
• 30 MHz shift clock frequency for high-speed data transfer
• Built-in thermal shutdown protection
• Open LED detection
• Output current accuracy: ±1%
• Exposed pad package for improved heat dissipation

Target Applications

• LED signage and displays (e.g., outdoor billboards, stadium scoreboards)
• Automotive lighting (e.g., dashboard backlighting, interior ambient lighting)
• Industrial control panels (e.g., PLC indicator lights)
• 5G base station status indicators
• General-purpose LED driving in consumer electronics

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STP16CP05XTTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STP16CP05XTTR 是意法半导体推出的一款单片低压16位恒流LED sink驱动器。该器件专为需要高精度和高可靠性的应用而设计，如标牌、汽车照明和工业显示器。它集成了16位移位寄存器和数据锁存器，支持串行数据输入和并行输出控制。每通道最大输出电流为30 mA，电源电压范围为3V至5.5V，非常适合驱动多个串联或并联的LED。封装为24-TSSOP-EP（带散热焊盘），以增强热性能。

詳細技術參數

核心特性

• 16个恒流输出通道
• 通过外部电阻可调输出电流
• 兼容3.3V和5V逻辑输入
• 30 MHz移位时钟频率，支持高速数据传输
• 内置热关断保护
• LED开路检测
• 输出电流精度：±1%
• 带散热焊盘封装，改善散热

典型應用場景

• LED标牌和显示屏（如户外广告牌、体育场计分板）
• 汽车照明（如仪表盘背光、车内氛围灯）
• 工业控制面板（如PLC指示灯）
• 5G基站状态指示灯
• 消费电子产品中的通用LED驱动

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STP16CP05XTTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
