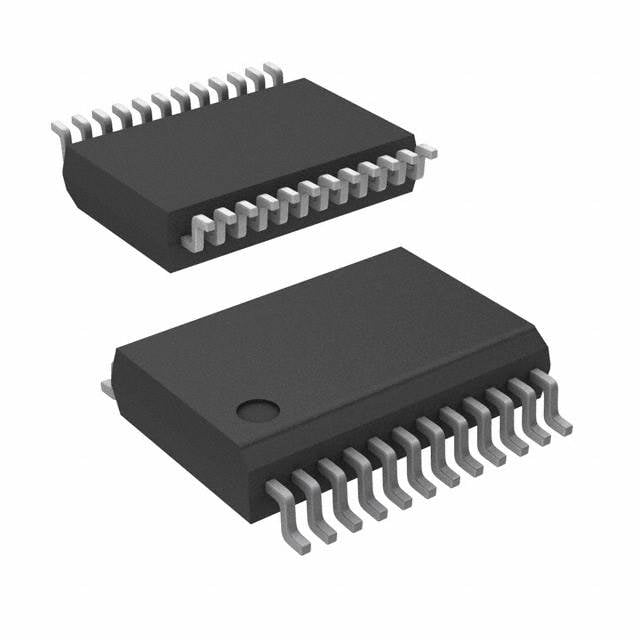

STP16DP05PTR ST LED Driver | 24-QSOP | 16-bit, 5V, 30mA

Product Overview

The STP16DP05PTR is a monolithic, low-voltage, 16-bit constant current LED sink driver from STMicroelectronics. It is designed for LED display and lighting applications, offering high precision and flexibility. The device integrates a 16-bit shift register, data latches, and constant current outputs, making it ideal for driving LEDs in parallel configurations. With a supply voltage range of 3V to 5.5V and output current up to 30mA per channel, it supports a wide range of LED types. The package is 24-QSOP, which is compact and suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current output channels
• Output current programmable via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1% (typical)
• Thermal shutdown protection
• Output enable (OE) pin for PWM dimming
• Low quiescent current
• Lead-free and RoHS compliant

Target Applications

• LED signage and displays (e.g., indoor full-color panels, outdoor billboards)
• Automotive lighting (e.g., dashboard backlighting, interior ambient lighting)
• Industrial control panels (e.g., PLC indicator lights, machine status displays)
• Consumer electronics (e.g., smart home devices, gaming peripherals)
• 5G base station status indicators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STP16DP05PTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
