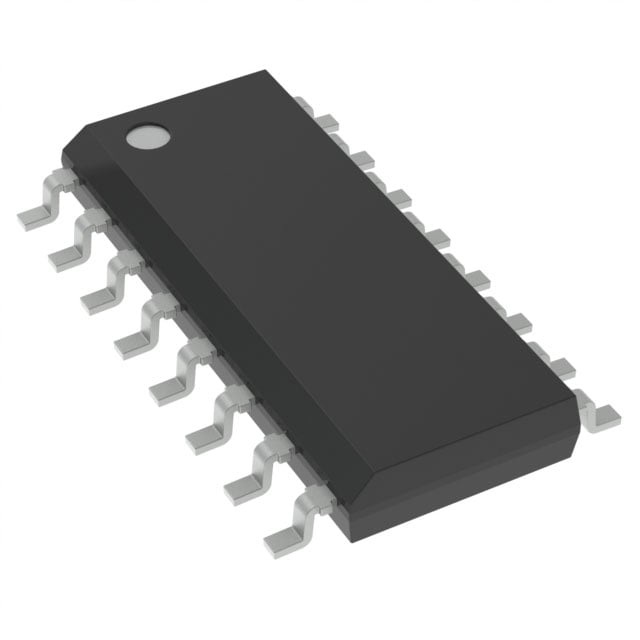

STPIC6C595MTR ST Power Management IC | 16-SO | 8-Bit Shift Register, 500mA Output

Product Overview

The STPIC6C595MTR is a monolithic, high-voltage, high-current power IC designed for use in systems that require a serial-to-parallel interface with output drivers. It integrates an 8-bit shift register, an 8-bit D-type latch, and 8 power Darlington transistors capable of sinking 500 mA each. The device operates with a supply voltage range of 4.5V to 5.5V for the logic section and up to 50V for the output section. It is housed in a compact 16-SO package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• 8-bit serial-in, parallel-out shift register with output latch
• High-current Darlington outputs (500 mA per channel)
• Output clamp diodes for inductive load driving
• Thermal shutdown protection
• Low power consumption (typical ICC 0.5 mA)
• Wide operating temperature range

Target Applications

The STPIC6C595MTR is ideal for driving resistive and inductive loads in applications such as:

• 5G base station power management and control
• Automotive dashboard indicator and display drivers
• Industrial PLC output modules
• LED matrix displays and signage
• Relay and solenoid drivers
