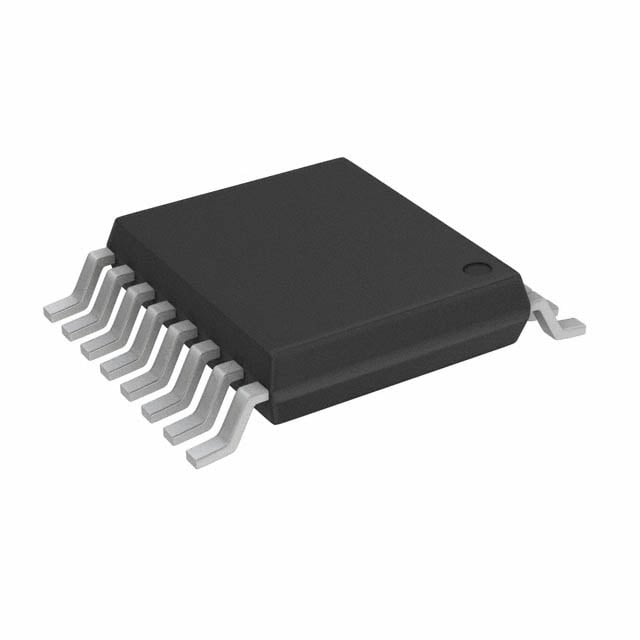

STPIC6C595TTR ST Power Management IC | 16-TSSOP | 8-Bit Shift Register, 500mA Output

Product Overview

The STPIC6C595TTR is a monolithic, high-voltage, high-current power IC designed for use in systems that require a serial-to-parallel interface with output drive capability. It integrates an 8-bit shift register, an 8-bit D-type latch, and eight power DMOS transistors with open-drain outputs. The device can be used as a power driver for various loads such as relays, solenoids, LEDs, and motors. It operates from a supply voltage range of 4.5V to 5.5V for the logic section and up to 50V for the output section, with a continuous output current of 500mA per channel.

Detailed Technical Specifications

Key Features

• 8-bit serial-in, parallel-out shift register with output latch
• High-voltage outputs up to 50V
• High-current outputs: 500mA per channel
• Open-drain outputs for driving inductive loads
• Outputs can be paralleled for higher current
• Thermal shutdown protection
• Low power consumption
• ESD protection

Target Applications

• 5G base station power management
• Automotive dashboard lighting and indicator control
• Industrial PLC output modules
• LED matrix displays
• Relay and solenoid drivers
• Motor control for small DC motors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STPIC6C595TTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
