STWD100NXWY3F ST Watchdog Timer | SOT-23-5 | 1.6s Timeout, 2.7-5.5V

Product Overview

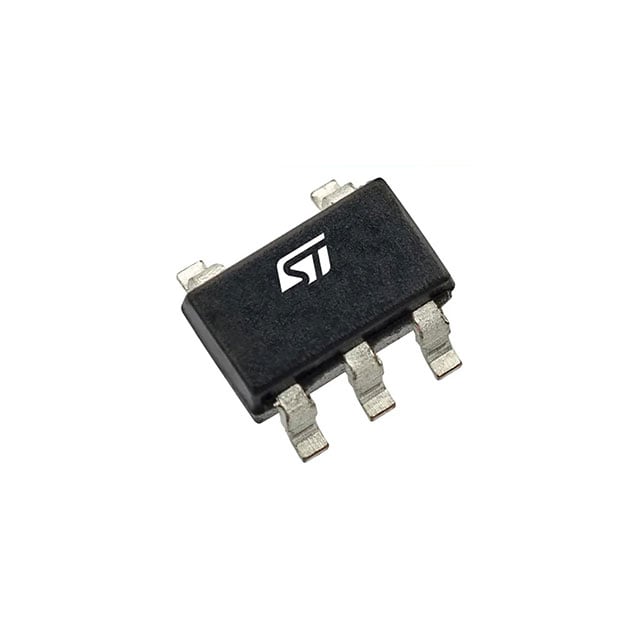

The STWD100NXWY3F is a standalone watchdog timer from STMicroelectronics, designed to monitor system activity and reset the host microcontroller if it fails to strobe within a preset timeout period. Housed in a compact SOT-23-5 package, this device ensures reliable operation in safety-critical applications. It operates over a wide supply voltage range of 2.7V to 5.5V and offers a typical watchdog timeout of 1.6 seconds. The open-drain output (RST) asserts low when a timeout occurs, providing a clean reset signal. With ultra-low power consumption (typically 1.5µA), it is ideal for battery-powered and energy-efficient systems.

Detailed Technical Specifications

Key Features

• Low supply current: 1.5µA typical
• Wide operating voltage range: 2.7V to 5.5V
• Watchdog timeout: 1.6s (typical)
• Open-drain RST output
• Reset pulse width: 250ms
• Operating temperature: -40°C to +125°C
• Small SOT-23-5 package

Target Applications

• 5G base station control boards
• Automotive dashboard ECUs
• Industrial PLCs and motor drives
• Medical monitoring devices
• Battery management systems (BMS)
• IoT edge gateways

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STWD100NXWY3F. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
