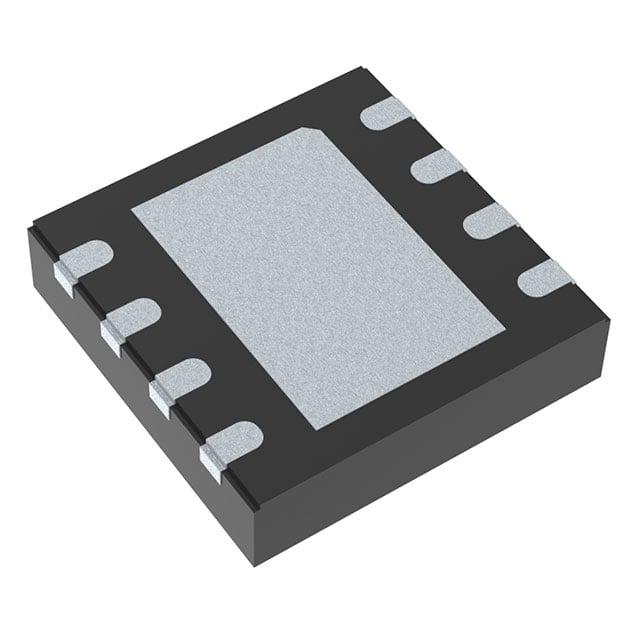

TS3011IYQ3T ST Comparator | 8-DFN(2x2) | 1.8V-5.5V, 1.2µA

Product Overview

The TS3011IYQ3T is a high-speed, low-power comparator from STMicroelectronics, designed for precision signal detection in space-constrained applications. Housed in a compact 8-DFN (2x2 mm) package, it operates over a wide supply voltage range of 1.8V to 5.5V, making it suitable for battery-powered and portable devices. With a typical supply current of only 1.2 µA, it offers an excellent balance between speed and power consumption, featuring a propagation delay of 120 ns. The device includes a push-pull output stage, eliminating the need for an external pull-up resistor, and supports rail-to-rail input common-mode voltage range.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 1.2 µA typical supply current
• Wide supply voltage range: 1.8V to 5.5V
• Fast propagation delay: 120 ns typical
• Rail-to-rail input common-mode voltage range
• Push-pull output for direct drive of logic inputs
• Low input offset voltage: ±5 mV max
• Very low input bias current: 1 pA typical
• Extended temperature range: -40°C to +125°C
• Compact 8-DFN (2x2 mm) package for space-constrained designs

Target Applications

• Battery-powered systems: portable medical devices, wearable health monitors
• Industrial sensors: proximity detectors, level sensors in factory automation
• Consumer electronics: smartphone proximity detection, tablet touchscreen controllers
• Automotive: window lift position sensing, seat belt buckle detection
• 5G base stations: power supply monitoring, signal integrity checking
• IoT nodes: threshold detection in environmental sensors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3011IYQ3T. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TS3011IYQ3T 是意法半導體推出的一款高速、低功耗比較器，專為空間受限應用中的精確信號檢測而設計。它採用緊湊的 8-DFN（2x2 mm）封裝，工作電源電壓範圍寬達 1.8V 至 5.5V，適用於電池供電和便攜式設備。典型電源電流僅為 1.2 µA，在速度和功耗之間實現了出色的平衡，傳播延遲為 120 ns。該器件包含推挽輸出級，無需外部上拉電阻，並支持軌到軌輸入共模電壓範圍。

詳細技術參數

核心特性

• 超低功耗：典型電源電流 1.2 µA
• 寬電源電壓範圍：1.8V 至 5.5V
• 快速傳播延遲：典型值 120 ns
• 軌到軌輸入共模電壓範圍
• 推挽輸出，可直接驅動邏輯輸入
• 低輸入失調電壓：最大值 ±5 mV
• 極低輸入偏置電流：典型值 1 pA
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 8-DFN（2x2 mm）封裝，適用於空間受限設計

典型應用場景

• 電池供電系統：便攜式醫療設備、可穿戴健康監測器
• 工業傳感器：接近檢測器、工廠自動化中的液位傳感器
• 消費電子：智能手機接近檢測、平板觸摸屏控制器
• 汽車電子：車窗升降位置感測、安全帶扣檢測
• 5G 基站：電源監控、信號完整性檢查
• 物聯網節點：環境傳感器中的閾值檢測

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TS3011IYQ3T 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
