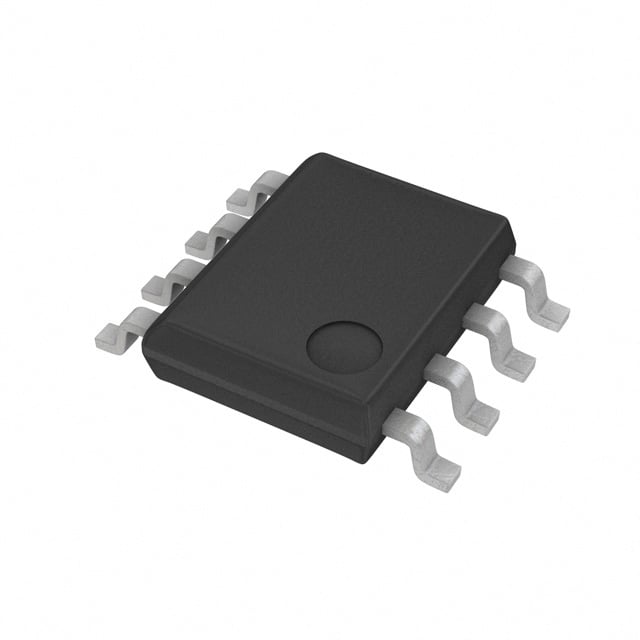

TSB182IYST ST Operational Amplifier | 8-MINISO | 36V, 3MHz

Product Overview

The TSB182IYST is a high-performance operational amplifier from STMicroelectronics, designed for precision signal conditioning in industrial and automotive applications. Housed in the compact 8-MINISO package, it offers a wide supply voltage range of 4V to 36V, making it suitable for both single and dual supply operations. With a gain bandwidth product of 3 MHz and a slew rate of 2 V/µs, this op-amp delivers excellent dynamic performance for sensor interfaces, active filters, and data acquisition systems. Its rail-to-rail input and output stages maximize the dynamic range, while the low input offset voltage (max 1 mV) ensures high accuracy. The device operates over an extended temperature range of -40°C to +125°C, meeting the stringent requirements of automotive and industrial environments.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 4V to 36V
• Rail-to-rail input and output
• Low input offset voltage: 1 mV max
• High gain bandwidth product: 3 MHz
• Low power consumption: 1.2 mA typical
• Extended temperature range: -40°C to +125°C
• Compact 8-MINISO package for space-constrained designs

Target Applications

• Automotive: Engine control units (ECU), battery management systems (BMS), and dashboard instrumentation
• Industrial: 5G base station power management, programmable logic controllers (PLC), and motor control
• Consumer: Audio preamplifiers, sensor signal conditioning, and portable medical devices
• Data acquisition: ADC driver, active filters, and precision rectifiers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSB182IYST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSB182IYST 是意法半導體推出的一款高性能運算放大器，專為工業和汽車應用的精密信號調理而設計。它採用緊湊的 8-MINISO 封裝，支持 4V 至 36V 的寬電源電壓範圍，適用於單電源和雙電源供電。該運算放大器具有 3 MHz 的增益帶寬積和 2 V/µs 的壓擺率，為傳感器接口、有源濾波器和數據採集系統提供出色的動態性能。其軌到軌輸入和輸出級可最大化動態範圍，而低輸入失調電壓（最大 1 mV）確保了高精度。該器件可在 -40°C 至 +125°C 的擴展溫度範圍內工作，滿足汽車和工業環境的嚴格要求。

詳細技術參數

核心特性

• 寬電源電壓範圍：4V 至 36V
• 軌到軌輸入和輸出
• 低輸入失調電壓：最大 1 mV
• 高增益帶寬積：3 MHz
• 低功耗：典型值 1.2 mA
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 8-MINISO 封裝，適合空間受限的設計

典型應用場景

• 汽車：發動機控制單元 (ECU)、電池管理系統 (BMS) 和儀表板儀表
• 工業：5G 基站電源管理、可編程邏輯控制器 (PLC) 和電機控制
• 消費電子：音頻前置放大器、傳感器信號調理和便攜式醫療設備
• 數據採集：ADC 驅動器、有源濾波器和精密整流器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSB182IYST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
