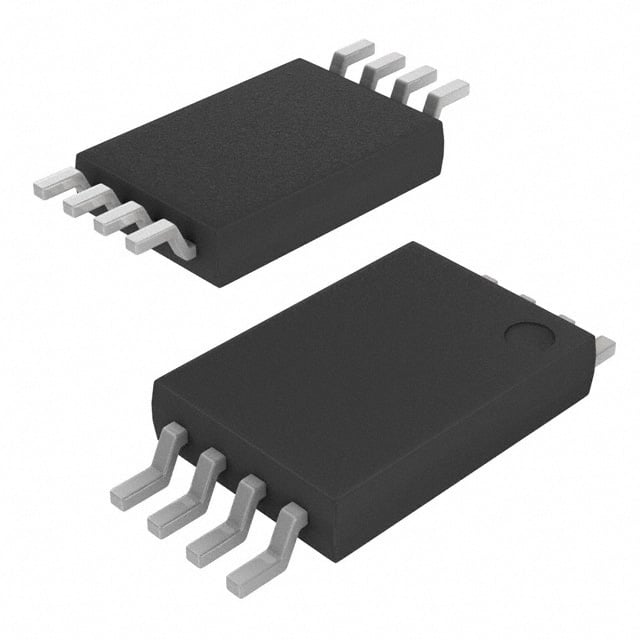

TSC102IPT ST Current Sense Amplifier | 8-TSSOP | High Voltage, Precision

Product Overview

The TSC102IPT from STMicroelectronics is a high-voltage, precision current sense amplifier designed for bidirectional current measurement. It operates from a single supply voltage of 2.7V to 30V and features a wide common-mode input voltage range from -4V to 60V, making it ideal for applications requiring high-side or low-side current sensing. The device is offered in a compact 8-pin TSSOP package, enabling space-efficient designs.

Detailed Technical Specifications

Key Features

• Wide common-mode input voltage range: -4V to 60V
• Single-supply operation: 2.7V to 30V
• High accuracy: offset voltage ±0.5 mV max
• Fixed gain of 20 V/V
• High bandwidth: 800 kHz
• Low quiescent current: 1.2 mA max
• Bidirectional current sensing capability
• Extended temperature range: -40°C to +125°C
• Compact 8-TSSOP package

Target Applications

• 5G base station power management
• Automotive dashboard current monitoring
• Industrial motor control
• Battery management systems
• Power supply current sensing
• Telecom equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC102IPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC102IPT 是意法半導體推出的一款高壓精密電流檢測放大器，專為雙向電流測量設計。它可在 2.7V 至 30V 的單電源電壓下工作，並具有 -4V 至 60V 的寬共模輸入電壓範圍，非常適合高端或低端電流檢測應用。該器件採用緊湊的 8 引腳 TSSOP 封裝，可實現節省空間的設計。

詳細技術參數

核心特性

• 寬共模輸入電壓範圍：-4V 至 60V
• 單電源供電：2.7V 至 30V
• 高精度：最大失調電壓 ±0.5 mV
• 固定增益 20 V/V
• 高帶寬：800 kHz
• 低靜態電流：最大 1.2 mA
• 雙向電流檢測能力
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 8-TSSOP 封裝

典型應用場景

• 5G 基站電源管理
• 汽車儀表板電流監控
• 工業電機控制
• 電池管理系統
• 電源電流檢測
• 電信設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC102IPT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
