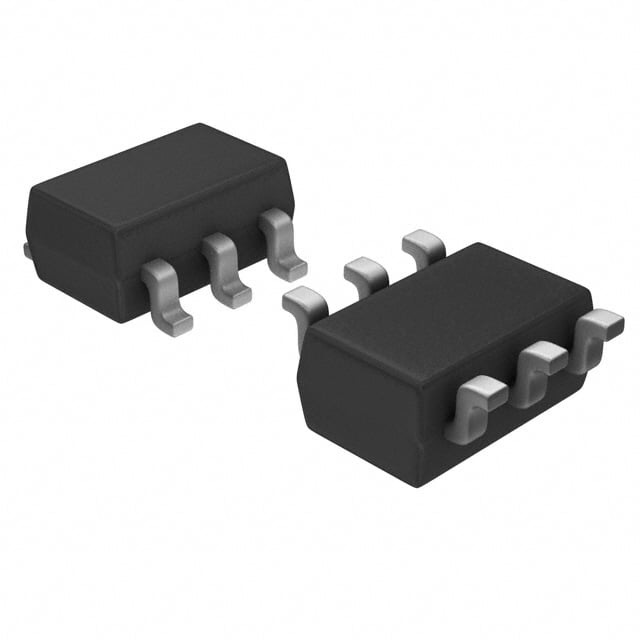

TSC1801BILT ST Comparator | SOT-23-6 | 1.8V-5.5V, 1.2µA

Product Overview

The TSC1801BILT from STMicroelectronics is a high-precision, low-power comparator in a compact SOT-23-6 package. It operates from 1.8V to 5.5V supply voltage, consuming only 1.2µA typical supply current. The device features rail-to-rail input and output, making it ideal for battery-powered and portable applications. With a propagation delay of 1.5µs and an open-drain output, it offers flexibility for various interface requirements.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 1.2µA typical
• Wide supply voltage range: 1.8V to 5.5V
• Rail-to-rail input and output
• Open-drain output for wired-OR connection
• High precision: ±5mV max offset
• Fast propagation delay: 1.5µs
• Extended temperature range: -40°C to +125°C
• Small SOT-23-6 package

Target Applications

• Battery-powered systems (e.g., portable medical devices, wearables)
• Threshold detectors in 5G base station power management
• Window comparators for automotive dashboard sensors
• Zero-crossing detectors in industrial motor control
• Over/under voltage protection circuits
• Signal conditioning for IoT sensor nodes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC1801BILT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC1801BILT 是意法半導體推出的一款高精度、低功耗比較器，採用緊湊的 SOT-23-6 封裝。它可在 1.8V 至 5.5V 的電源電壓範圍內工作，典型電源電流僅為 1.2µA。該器件具有軌到軌輸入和輸出，非常適合電池供電和便攜式應用。傳播延遲為 1.5µs，開漏輸出為各種接口需求提供了靈活性。

詳細技術參數

核心特性

• 超低功耗：典型 1.2µA
• 寬電源電壓範圍：1.8V 至 5.5V
• 軌到軌輸入和輸出
• 開漏輸出，支持線或連接
• 高精度：最大失調 ±5mV
• 快速傳播延遲：1.5µs
• 擴展溫度範圍：-40°C 至 +125°C
• 小型 SOT-23-6 封裝

典型應用場景

• 電池供電系統（如便攜醫療設備、可穿戴設備）
• 5G 基站電源管理中的閾值檢測器
• 汽車儀表板傳感器的窗口比較器
• 工業電機控制中的過零檢測器
• 過壓/欠壓保護電路
• 物聯網傳感器節點的信號調理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC1801BILT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
