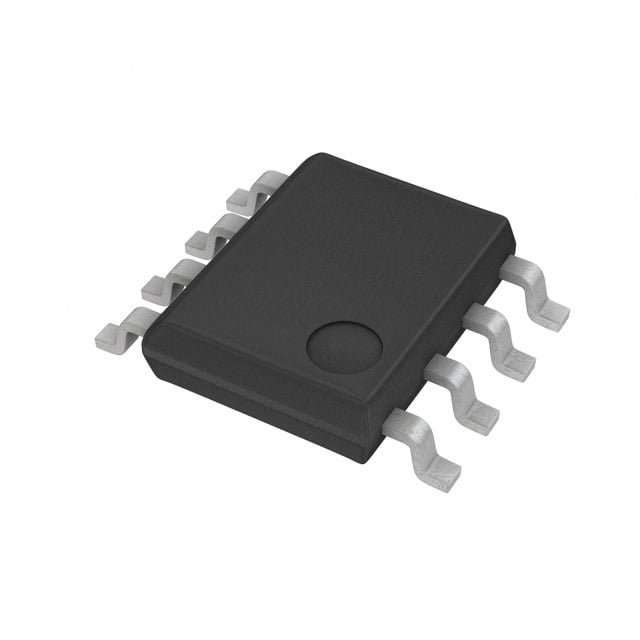

TSC2022IST ST Current Sense Amplifier | 8-MINISO | 500kHz Bandwidth, 2.7-26V Supply

Product Overview

The TSC2022IST from STMicroelectronics is a high-side current sense amplifier designed for precision current measurement in a wide range of applications. It operates over a supply voltage range of 2.7V to 26V and features a bandwidth of 500kHz, making it suitable for fast transient response. The device is offered in the compact 8-MINISO package, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-side current sensing with 500kHz bandwidth
• Wide supply voltage range: 2.7V to 26V
• Low offset voltage: ±0.5mV max
• Fixed gain of 20 V/V
• Low quiescent current: 340µA typical
• Extended temperature range: -40°C to +125°C
• Compact 8-MINISO package

Target Applications

• 5G base station power management
• Automotive dashboard current monitoring
• Industrial motor control
• Battery management systems
• Power supply modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2022IST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC2022IST 是意法半導體推出的一款高端電流檢測放大器，專為精確電流測量而設計，適用於多種應用場景。其電源電壓範圍為 2.7V 至 26V，帶寬為 500kHz，可實現快速瞬態響應。該器件採用緊湊的 8-MINISO 封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 高端電流檢測，帶寬 500kHz
• 寬電源電壓範圍：2.7V 至 26V
• 低失調電壓：±0.5mV 最大值
• 固定增益 20 V/V
• 低靜態電流：典型值 340µA
• 寬溫度範圍：-40°C 至 +125°C
• 緊湊的 8-MINISO 封裝

典型應用場景

• 5G 基站電源管理
• 汽車儀表板電流監控
• 工業電機控制
• 電池管理系統
• 電源模塊

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC2022IST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
