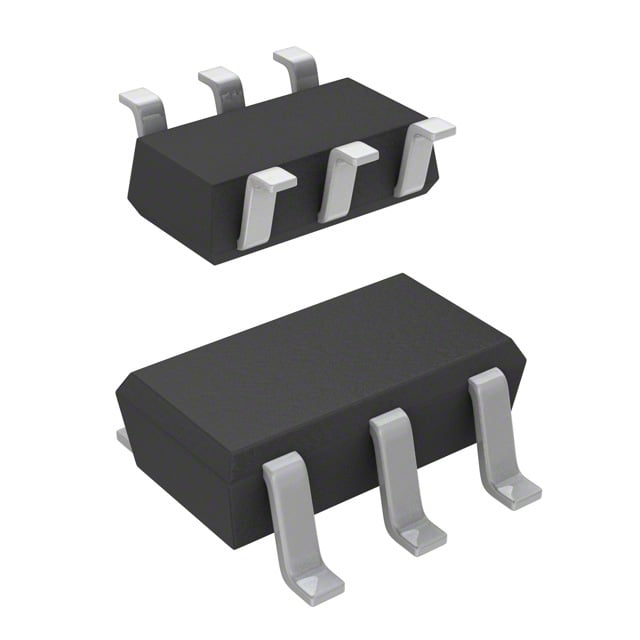

TSC214IYCT ST Current Sense Amplifier | SC-70-6 | 500kHz BW, 4V-26V

Product Overview

The TSC214IYCT is a high-side current sense amplifier from STMicroelectronics, designed for precise current measurement in a variety of applications. It features a wide common-mode input voltage range from 4V to 26V, making it suitable for both low and high voltage systems. The device is offered in a compact SC-70-6 package, ideal for space-constrained designs. With a bandwidth of 500kHz, it enables fast current monitoring for dynamic load conditions.

Detailed Technical Specifications

Key Features

• Wide common-mode input voltage range: 4V to 26V
• High bandwidth: 500kHz
• Low offset voltage: ±1.5mV max
• Low gain error: ±1% max
• Low quiescent current: 340µA typ
• Available in SC-70-6 package
• Operating temperature range: -40°C to +125°C

Target Applications

• 5G base station power management
• Automotive dashboard current monitoring
• Industrial motor control
• Battery management systems
• Power supply monitoring
• Telecom equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC214IYCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC214IYCT 是意法半導體推出的一款高端電流檢測放大器，專為精確測量各種應用中的電流而設計。它具有 4V 至 26V 的寬共模輸入電壓範圍，適用於低壓和高壓系統。該器件採用緊湊的 SC-70-6 封裝，非常適合空間受限的設計。憑藉 500kHz 的帶寬，它能夠實現動態負載條件的快速電流監測。

詳細技術參數

核心特性

• 寬共模輸入電壓範圍：4V 至 26V
• 高帶寬：500kHz
• 低失調電壓：±1.5mV 最大值
• 低增益誤差：±1% 最大值
• 低靜態電流：340µA 典型值
• 採用 SC-70-6 封裝
• 工作溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站電源管理
• 汽車儀表板電流監測
• 工業電機控制
• 電池管理系統
• 電源監控
• 電信設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC214IYCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
