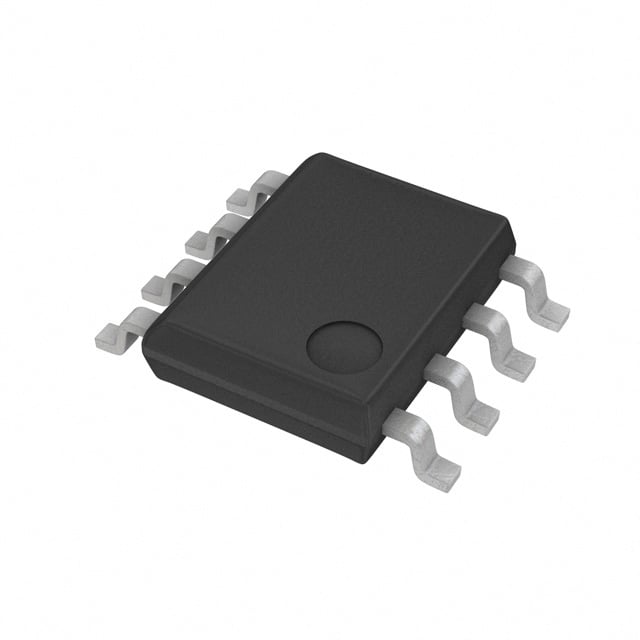

TSV522IST ST Operational Amplifier | 8-MINISO | 3MHz GBW, 1.5V/µs Slew Rate

Product Overview

The TSV522IST is a high-performance, dual operational amplifier from STMicroelectronics, housed in a compact 8-pin MINISO package. It offers a wide supply voltage range from 2.7V to 5.5V, making it suitable for battery-powered and low-voltage applications. With a gain bandwidth product of 3MHz and a slew rate of 1.5V/µs, it provides excellent dynamic performance for signal conditioning and filtering tasks. The device features rail-to-rail input and output, low input offset voltage (max 1mV), and low power consumption (820µA per channel at 5V). It is designed for industrial and automotive applications requiring precision and reliability.

Detailed Technical Specifications

Key Features

• Rail-to-rail input and output swing
• Low input offset voltage: 1 mV max
• Low power consumption: 820 µA per channel
• Wide supply voltage range: 2.7V to 5.5V
• High output current: 80 mA
• Extended temperature range: -40°C to +125°C
• Unity-gain stable

Target Applications

• 5G base station power management and signal conditioning
• Automotive dashboard displays and sensor interfaces
• Battery-powered instrumentation and portable devices
• Active filters and data acquisition systems
• Industrial process control and motor drives

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV522IST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV522IST 是意法半導體推出的一款高性能雙運算放大器，採用緊湊的 8 引腳 MINISO 封裝。其電源電壓範圍為 2.7V 至 5.5V，適合電池供電和低電壓應用。具有 3MHz 增益帶寬積和 1.5V/µs 壓擺率，為信號調理和濾波提供卓越的動態性能。器件支持軌到軌輸入輸出，低輸入失調電壓（最大 1mV），以及低功耗（5V 時每通道 820µA）。專為需要高精度和高可靠性的工業及汽車應用設計。

詳細技術參數

核心特性

• 軌到軌輸入和輸出擺幅
• 低輸入失調電壓：最大 1 mV
• 低功耗：每通道 820 µA
• 寬電源電壓範圍：2.7V 至 5.5V
• 高輸出電流：80 mA
• 擴展溫度範圍：-40°C 至 +125°C
• 單位增益穩定

典型應用場景

• 5G 基站電源管理和信號調理
• 汽車儀表板顯示和傳感器接口
• 電池供電儀器和便攜設備
• 有源濾波器和數據採集系統
• 工業過程控制和電機驅動

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV522IST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
