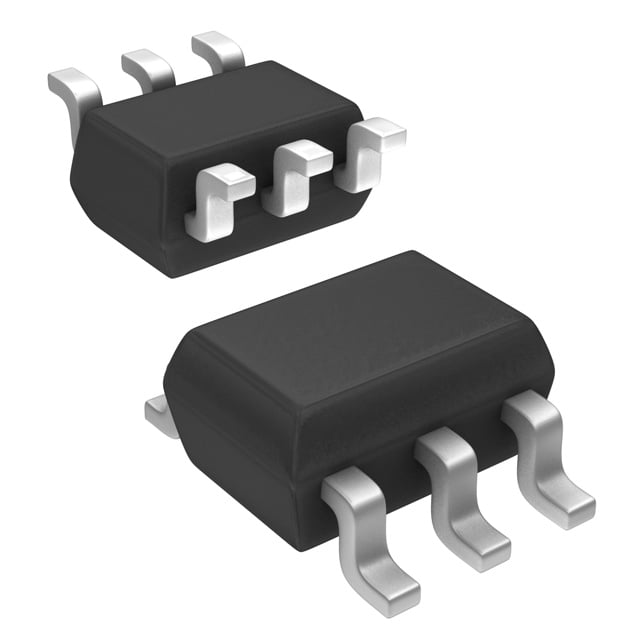

TSV6290AICT ST Operational Amplifier | SC-70-6 | 10MHz GBW, 4.5V/µs Slew Rate

Product Overview

The TSV6290AICT is a high-performance, single operational amplifier from STMicroelectronics, designed for low-power and high-speed applications. Housed in a compact SC-70-6 package, it offers a gain bandwidth product of 10 MHz and a slew rate of 4.5 V/µs, making it suitable for signal conditioning, filtering, and sensor interfaces. Its rail-to-rail input and output capability ensures maximum dynamic range in low-voltage systems.

Detailed Technical Specifications

Key Features

• Low power consumption: 1.1 mA quiescent current
• High speed: 10 MHz GBW, 4.5 V/µs slew rate
• Rail-to-rail input and output
• Low input offset voltage: 1 mV max
• Very low input bias current: 1 pA typ
• Wide supply voltage range: 2.5V to 5.5V
• Extended temperature range: -40°C to +125°C
• Small SC-70-6 package for space-constrained designs

Target Applications

• 5G base station: Signal conditioning for RF power amplifiers
• Automotive dashboard: Sensor amplification for temperature and pressure
• Portable medical devices: ECG signal amplification
• Industrial automation: 4-20 mA current loop receivers
• Consumer electronics: Audio pre-amplification in smartphones

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV6290AICT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV6290AICT 是意法半導體推出的一款高性能單運算放大器，專為低功耗和高速應用設計。採用緊湊的 SC-70-6 封裝，提供 10 MHz 增益帶寬積和 4.5 V/µs 壓擺率，適用於信號調理、濾波和傳感器接口。其軌到軌輸入輸出能力確保在低電壓系統中獲得最大動態範圍。

詳細技術參數

核心特性

• 低功耗：靜態電流 1.1 mA
• 高速：10 MHz GBW，4.5 V/µs 壓擺率
• 軌到軌輸入輸出
• 低輸入失調電壓：最大 1 mV
• 極低輸入偏置電流：典型 1 pA
• 寬電源電壓範圍：2.5V 至 5.5V
• 擴展溫度範圍：-40°C 至 +125°C
• 小型 SC-70-6 封裝，適合空間受限設計

典型應用場景

• 5G 基站：射頻功率放大器的信號調理
• 汽車儀表板：溫度和壓力傳感器放大
• 便攜式醫療設備：心電信號放大
• 工業自動化：4-20 mA 電流環接收器
• 消費電子：智能手機中的音頻前置放大

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV6290AICT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
