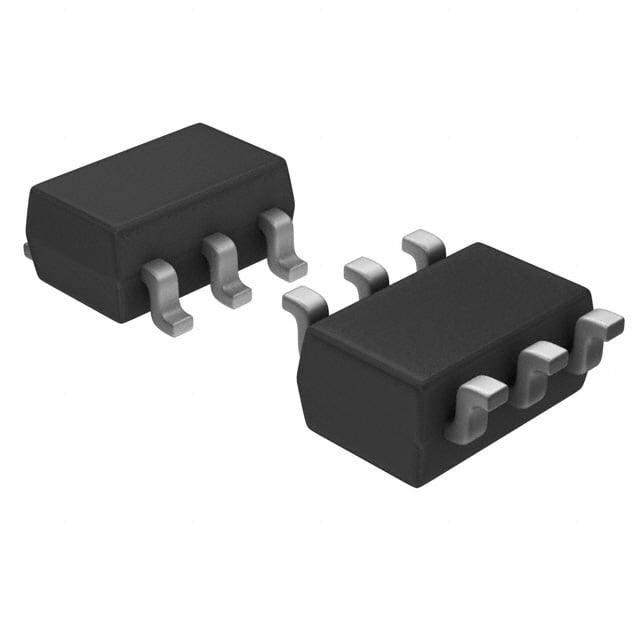

TSV630ILT ST Operational Amplifier | SOT-23-6 | 880kHz GBW, 3.3V/μs Slew Rate

Product Overview

The TSV630ILT is a high-performance, low-power operational amplifier from STMicroelectronics, housed in a compact SOT-23-6 package. It offers a gain bandwidth product of 880 kHz and a slew rate of 3.3 V/μs, making it suitable for a wide range of general-purpose and sensor interface applications. The device operates from a single supply voltage ranging from 1.8V to 5.5V, ensuring compatibility with low-voltage systems. Its rail-to-rail input and output stages maximize dynamic range, while the low input offset voltage (typically 0.5 mV) and low noise (25 nV/√Hz) enhance precision.

Detailed Technical Specifications

Key Features

• Rail-to-rail input and output
• Low power consumption: 60 μA (typ) per amplifier
• Low input offset voltage: 0.5 mV (typ)
• High output current: ±80 mA
• Wide supply voltage range: 1.8V to 5.5V
• Extended temperature range: -40°C to +125°C
• Small SOT-23-6 package for space-constrained designs

Target Applications

• Sensor signal conditioning (e.g., pressure sensors in automotive ECUs)
• Portable instrumentation (e.g., battery-powered medical devices)
• Active filters (e.g., anti-aliasing filters in 5G base station receivers)
• Data acquisition systems (e.g., industrial PLC analog input modules)
• Audio processing (e.g., microphone preamplifiers in smart speakers)
• Automotive electronics (e.g., dashboard display drivers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV630ILT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV630ILT 是意法半導體推出的一款高性能、低功耗運算放大器，採用緊湊的 SOT-23-6 封裝。其增益帶寬積為 880 kHz，壓擺率為 3.3 V/μs，適用於各種通用和傳感器接口應用。器件工作電源電壓範圍為 1.8V 至 5.5V，可與低壓系統兼容。軌到軌輸入和輸出級最大化動態範圍，而低輸入失調電壓（典型值 0.5 mV）和低噪聲（25 nV/√Hz）提高了精度。

詳細技術參數

核心特性

• 軌到軌輸入和輸出
• 低功耗：每個放大器典型值 60 μA
• 低輸入失調電壓：典型值 0.5 mV
• 高輸出電流：±80 mA
• 寬電源電壓範圍：1.8V 至 5.5V
• 擴展溫度範圍：-40°C 至 +125°C
• 小型 SOT-23-6 封裝，適合空間受限的設計

典型應用場景

• 傳感器信號調理（例如汽車 ECU 中的壓力傳感器）
• 便攜式儀器（例如電池供電的醫療設備）
• 有源濾波器（例如 5G 基站接收機中的抗混疊濾波器）
• 數據採集系統（例如工業 PLC 模擬輸入模塊）
• 音頻處理（例如智能音箱中的麥克風前置放大器）
• 汽車電子（例如儀表盤顯示驅動器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV630ILT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
