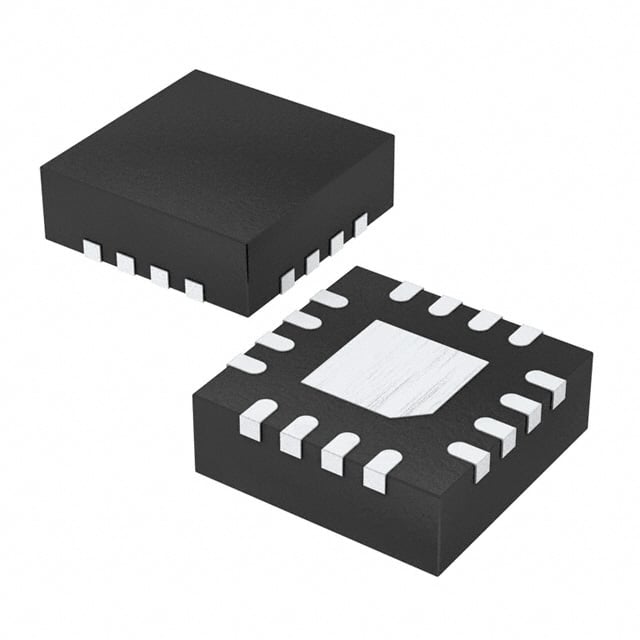

TSV734IQ4T ST Op Amps | 16-QFN (3x3) | 1.8V-5.5V, 1.2MHz

Product Overview

The TSV734IQ4T is a high-performance, low-power quad operational amplifier from STMicroelectronics, housed in a compact 16-QFN (3x3 mm) package. It offers a wide supply voltage range from 1.8V to 5.5V, making it suitable for battery-powered and portable applications. With a gain bandwidth product of 1.2 MHz and a low input offset voltage of 1 mV max, it provides excellent accuracy for signal conditioning. The device features rail-to-rail input and output, enabling full dynamic range even at low supply voltages. Its low quiescent current of 60 µA per channel makes it ideal for power-sensitive designs.

Detailed Technical Specifications

Key Features

• Low power consumption: 60 µA per channel
• Wide supply voltage range: 1.8V to 5.5V
• Rail-to-rail input and output
• Low input offset voltage: 1 mV max
• High gain bandwidth: 1.2 MHz
• Extended temperature range: -40°C to +125°C
• Compact 16-QFN package (3x3 mm)

Target Applications

• Battery-powered instrumentation
• Portable medical devices (e.g., glucose meters)
• Sensor signal conditioning (e.g., pressure sensors in automotive)
• Active filters in audio equipment
• Data acquisition systems
• Industrial control loops

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV734IQ4T. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV734IQ4T 是意法半導體推出的一款高性能、低功耗四路運算放大器，採用緊湊的 16-QFN（3x3 mm）封裝。其電源電壓範圍寬達 1.8V 至 5.5V，非常適合電池供電和便攜式應用。1.2 MHz 的增益帶寬積和最大 1 mV 的低輸入失調電壓，為信號調理提供了出色的精度。該器件具有軌到軌輸入和輸出，即使在低電源電壓下也能實現滿動態範圍。每通道 60 µA 的低靜態電流使其成為功耗敏感型設計的理想選擇。

詳細技術參數

核心特性

• 低功耗：每通道 60 µA
• 寬電源電壓範圍：1.8V 至 5.5V
• 軌到軌輸入和輸出
• 低輸入失調電壓：最大 1 mV
• 高增益帶寬：1.2 MHz
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 16-QFN 封裝（3x3 mm）

典型應用場景

• 電池供電的儀器儀表
• 便攜式醫療設備（例如血糖儀）
• 傳感器信號調理（例如汽車中的壓力傳感器）
• 音頻設備中的有源濾波器
• 數據採集系統
• 工業控制迴路

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV734IQ4T 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
