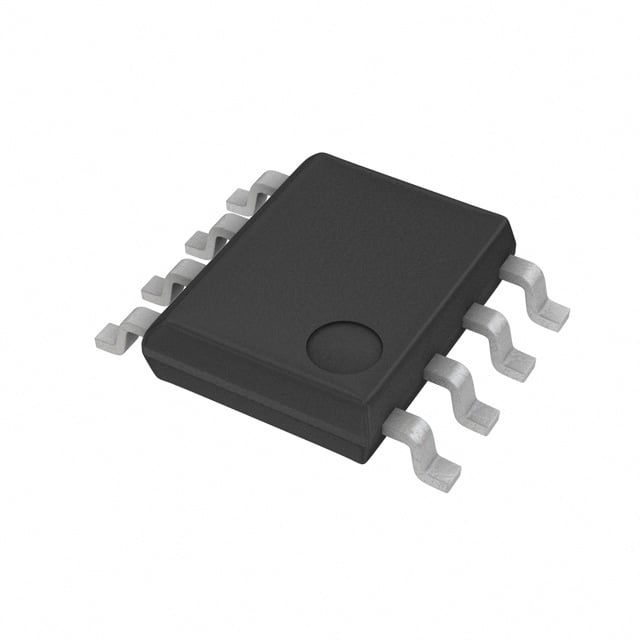

TSV7722IYST ST Operational Amplifier | 8-MINISO | 20MHz, 10V/µs

Product Overview

The TSV7722IYST is a high-performance, dual operational amplifier from STMicroelectronics, housed in a compact 8-MINISO package. It offers a wide bandwidth of 20 MHz and a slew rate of 10 V/µs, making it suitable for a variety of signal conditioning applications. The device operates from a single supply voltage range of 2.5V to 5.5V, with rail-to-rail input and output capabilities, ensuring maximum dynamic range. Its low input offset voltage (max 1 mV) and low noise (10 nV/√Hz) make it ideal for precision applications.

Detailed Technical Specifications

Key Features

• Rail-to-rail input and output
• Low input offset voltage: 1 mV max
• Low noise: 10 nV/√Hz
• High slew rate: 10 V/µs
• Wide bandwidth: 20 MHz
• Low power consumption: 1.1 mA per channel
• ESD protection: 4 kV HBM
• Extended temperature range: -40°C to +125°C

Target Applications

• 5G base station signal conditioning
• Automotive dashboard displays
• Industrial sensor interfaces
• Portable medical devices
• Audio preamplifiers
• Active filters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV7722IYST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV7722IYST 是意法半導體推出的一款高性能雙運算放大器，採用緊湊的 8-MINISO 封裝。它具有 20 MHz 的寬帶寬和 10 V/µs 的壓擺率，適用於各種信號調理應用。該器件可在 2.5V 至 5.5V 的單電源電壓範圍內工作，具有軌到軌輸入和輸出能力，確保最大動態範圍。其低輸入失調電壓（最大 1 mV）和低噪聲（10 nV/√Hz）使其成為精密應用的理想選擇。

詳細技術參數

核心特性

• 軌到軌輸入和輸出
• 低輸入失調電壓：最大 1 mV
• 低噪聲：10 nV/√Hz
• 高壓擺率：10 V/µs
• 寬帶寬：20 MHz
• 低功耗：每通道 1.1 mA
• ESD 保護：4 kV HBM
• 擴展溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站信號調理
• 汽車儀表盤顯示
• 工業傳感器接口
• 便攜式醫療設備
• 音頻前置放大器
• 有源濾波器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV7722IYST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
