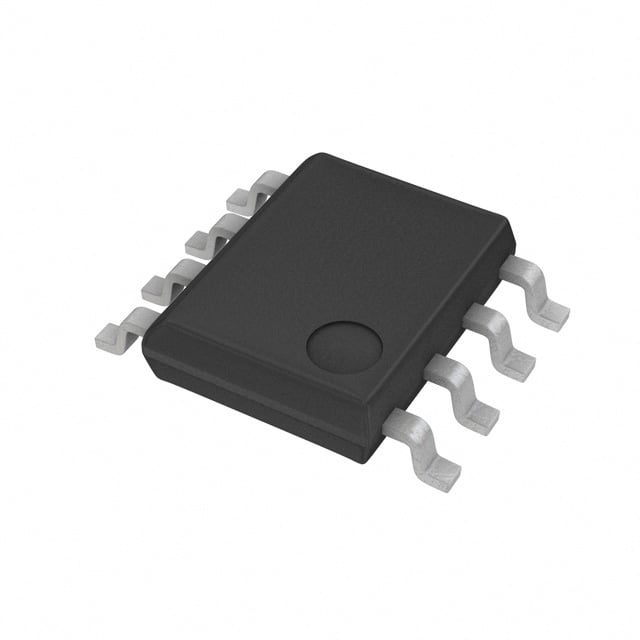

TSV772IYST ST Operational Amplifier | 8-MINISO | 20MHz GBW, 10V/µs Slew Rate

Product Overview

The TSV772IYST is a high-performance operational amplifier from STMicroelectronics, designed for precision signal conditioning in industrial and automotive applications. Housed in the compact 8-MINISO package, it offers a wide bandwidth of 20 MHz and a slew rate of 10 V/µs, making it suitable for high-speed data acquisition and sensor interfaces. The device operates over a supply voltage range of 2.5 V to 5.5 V and features rail-to-rail input and output, ensuring maximum dynamic range. With a low input offset voltage of 200 µV max and a low noise density of 8 nV/√Hz, the TSV772IYST delivers excellent accuracy for demanding applications.

Detailed Technical Specifications

Key Features

• Wide bandwidth: 20 MHz
• High slew rate: 10 V/µs
• Low input offset voltage: 200 µV max
• Rail-to-rail input and output
• Low noise: 8 nV/√Hz
• Low power consumption: 1.1 mA per channel
• Extended temperature range: -40°C to +125°C
• Compact 8-MINISO package

Target Applications

• 5G base station transceiver signal conditioning
• Automotive dashboard sensor interfaces
• Industrial process control loops
• Medical instrumentation (e.g., ECG amplifiers)
• High-speed data acquisition systems
• Active filters and integrators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV772IYST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV772IYST 是意法半導體推出的一款高性能運算放大器，專為工業和汽車應用中的精密信號調理而設計。該器件採用緊湊的 8-MINISO 封裝，提供 20 MHz 的寬帶寬和 10 V/µs 的壓擺率，適用於高速數據採集和傳感器接口。電源電壓範圍為 2.5 V 至 5.5 V，具有軌到軌輸入和輸出，確保最大動態範圍。最大輸入失調電壓為 200 µV，噪聲密度為 8 nV/√Hz，TSV772IYST 在要求苛刻的應用中提供出色的精度。

詳細技術參數

核心特性

• 寬帶寬：20 MHz
• 高壓擺率：10 V/µs
• 低輸入失調電壓：200 µV 最大值
• 軌到軌輸入和輸出
• 低噪聲：8 nV/√Hz
• 低功耗：每通道 1.1 mA
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 8-MINISO 封裝

典型應用場景

• 5G 基站收發器信號調理
• 汽車儀表板傳感器接口
• 工業過程控制迴路
• 醫療儀器（例如心電圖放大器）
• 高速數據採集系統
• 有源濾波器和積分器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV772IYST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
