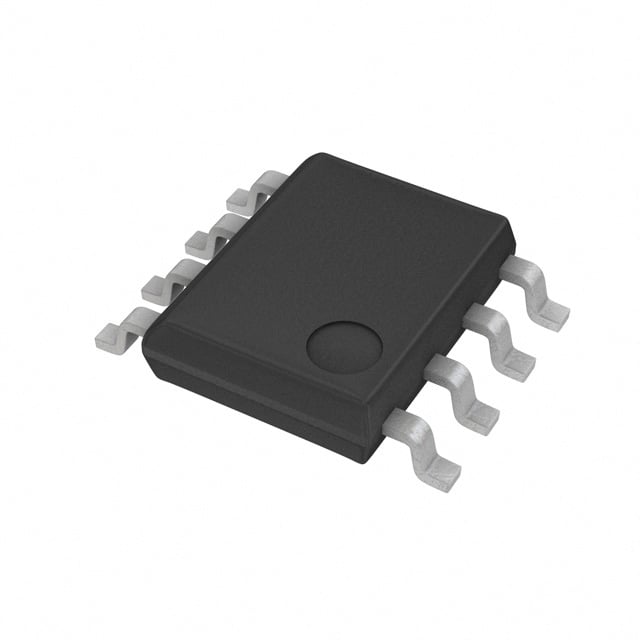

TSV912IYST ST Operational Amplifier | 8-MINISO | 8MHz, 4.5V/µs

Product Overview

The TSV912IYST is a high-performance, dual operational amplifier from STMicroelectronics, designed for a wide range of applications requiring low power consumption and high speed. Housed in the compact 8-MINISO package, this device offers a gain bandwidth product of 8 MHz and a slew rate of 4.5 V/µs, making it suitable for signal conditioning, active filtering, and sensor interfaces. It operates over a supply voltage range of 2.5V to 5.5V, ensuring compatibility with both 3.3V and 5V systems. The TSV912IYST features rail-to-rail input and output, low offset voltage, and low noise, providing excellent accuracy and dynamic performance.

Detailed Technical Specifications

Key Features

• Rail-to-rail input and output
• Low power consumption: 820 µA per channel (typ)
• Low offset voltage: 0.5 mV max
• Low noise: 10 nV/√Hz at 1 kHz
• High output current: 63 mA
• Extended temperature range: -40°C to +125°C
• ESD protection: 4 kV HBM

Target Applications

• 5G base station: Signal conditioning for RF power amplifiers
• Automotive dashboard: Sensor interface for temperature and pressure sensors
• Industrial automation: Active filters for process control loops
• Medical devices: ECG and EEG signal amplification
• Portable instrumentation: Battery-powered data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSV912IYST. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSV912IYST 是意法半導體推出的一款高性能雙運算放大器，專為需要低功耗和高速度的廣泛應用而設計。該器件採用緊湊的 8-MINISO 封裝，提供 8 MHz 的增益帶寬積和 4.5 V/µs 的壓擺率，適用於信號調理、有源濾波和傳感器接口。它在 2.5V 至 5.5V 的電源電壓範圍內工作，確保與 3.3V 和 5V 系統兼容。TSV912IYST 具有軌到軌輸入和輸出、低失調電壓和低噪聲，提供出色的精度和動態性能。

詳細技術參數

核心特性

• 軌到軌輸入和輸出
• 低功耗：每通道 820 µA（典型值）
• 低失調電壓：0.5 mV 最大值
• 低噪聲：10 nV/√Hz @ 1 kHz
• 高輸出電流：63 mA
• 擴展溫度範圍：-40°C 至 +125°C
• ESD 保護：4 kV HBM

典型應用場景

• 5G 基站：射頻功率放大器的信號調理
• 汽車儀表板：溫度和壓力傳感器的接口
• 工業自動化：過程控制迴路的有源濾波器
• 醫療設備：心電圖和腦電圖信號放大
• 便攜式儀器：電池供電的數據採集系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSV912IYST 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
