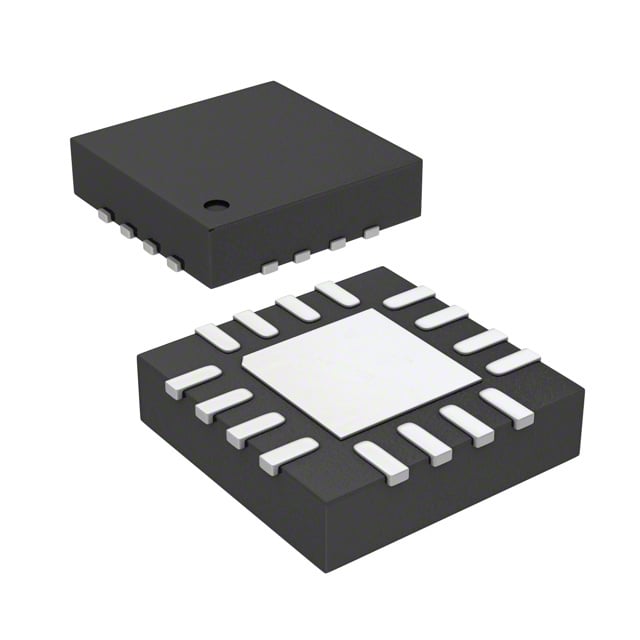

TSX564IQ4T ST Operational Amplifier | 16-QFN(3X3) | 1.8V-5.5V, 1.2MHz

Product Overview

The TSX564IQ4T is a high-performance, low-power quad operational amplifier from STMicroelectronics, designed for a wide range of applications requiring precision and efficiency. Housed in a compact 16-QFN (3x3 mm) package, this device offers excellent speed-to-power ratio with a gain bandwidth product of 1.2 MHz and a typical supply current of just 200 µA per channel. It operates over a supply voltage range of 1.8V to 5.5V, making it ideal for battery-powered and portable equipment. The rail-to-rail input and output capability ensures maximum dynamic range, while the extended temperature range (-40°C to +125°C) allows use in harsh environments.

Detailed Technical Specifications

Key Features

• Low power consumption: 200 µA per channel
• Wide supply voltage range: 1.8V to 5.5V
• Rail-to-rail input and output
• High gain bandwidth product: 1.2 MHz
• Low input offset voltage: 1 mV max
• Very low input bias current: 1 pA typical
• Extended temperature range: -40°C to +125°C
• Compact 16-QFN (3x3 mm) package

Target Applications

• 5G base station power management and signal conditioning
• Automotive dashboard displays and sensor interfaces
• Battery-powered portable devices (e.g., medical monitors, handheld instruments)
• Industrial process control and data acquisition systems
• Audio pre-amplification and filtering
• Active filters and analog signal processing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSX564IQ4T. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSX564IQ4T 是意法半導體推出的一款高性能、低功耗四通道運算放大器，專為需要精準度和效率的廣泛應用而設計。該器件採用緊湊的 16-QFN（3x3 mm）封裝，具有 1.2 MHz 的增益帶寬積和每通道典型 200 µA 的供電電流，提供了出色的速度與功耗比。它可在 1.8V 至 5.5V 的電源電壓範圍內工作，非常適合電池供電和便攜式設備。軌到軌輸入和輸出能力確保了最大的動態範圍，而擴展的溫度範圍（-40°C 至 +125°C）允許在惡劣環境中使用。

詳細技術參數

核心特性

• 低功耗：每通道 200 µA
• 寬電源電壓範圍：1.8V 至 5.5V
• 軌到軌輸入和輸出
• 高增益帶寬積：1.2 MHz
• 低輸入失調電壓：最大值 1 mV
• 極低輸入偏置電流：典型值 1 pA
• 擴展溫度範圍：-40°C 至 +125°C
• 緊湊的 16-QFN（3x3 mm）封裝

典型應用場景

• 5G 基站電源管理和信號調理
• 汽車儀表板顯示器和傳感器接口
• 電池供電的便攜設備（例如醫療監護儀、手持儀器）
• 工業過程控制和數據採集系統
• 音頻前置放大和濾波
• 有源濾波器和模擬信號處理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSX564IQ4T 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
