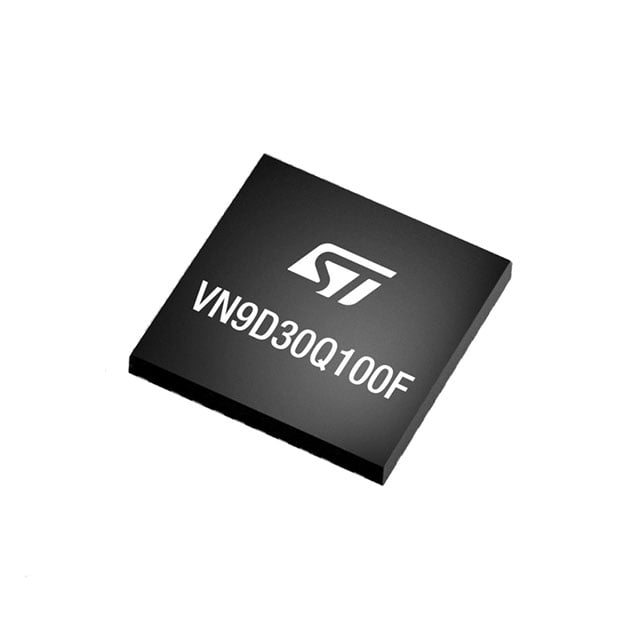

VN9D30Q100FTR ST Power Switch | 32-QFN (6x6) | 30mΩ, 100A

Product Overview

The VN9D30Q100FTR is a high-performance double-channel high-side power switch from STMicroelectronics, designed for automotive and industrial applications. It integrates two independent power switches with advanced protection features, capable of driving resistive, inductive, and capacitive loads. The device is housed in a compact 32-QFN (6x6) package, offering excellent thermal performance and space savings.

Detailed Technical Specifications

Key Features

• Dual-channel high-side switch with very low on-resistance (30 mΩ per channel)
• Wide operating voltage range (4V to 28V) suitable for 12V and 24V systems
• High continuous current capability up to 100A per channel
• Comprehensive protection: overload, short-circuit, overtemperature, undervoltage lockout, and active clamp for inductive loads
• Advanced diagnostic functions: open-load detection, output short to VCC detection, and overtemperature warning
• Very low standby current (< 5 μA) for battery-powered applications
• Compact 32-QFN (6x6) package with exposed pad for enhanced thermal dissipation
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Body control modules, lighting systems (LED headlamps, DRLs), seat heating, window lift motors, and HVAC blowers
• Industrial: Programmable logic controllers (PLCs), motor control for conveyors, and power distribution modules
• Consumer: High-power LED lighting, power tools, and battery management systems
• Specific examples: 5G base station power distribution, electric vehicle battery disconnect switches, and industrial robotic arm control
