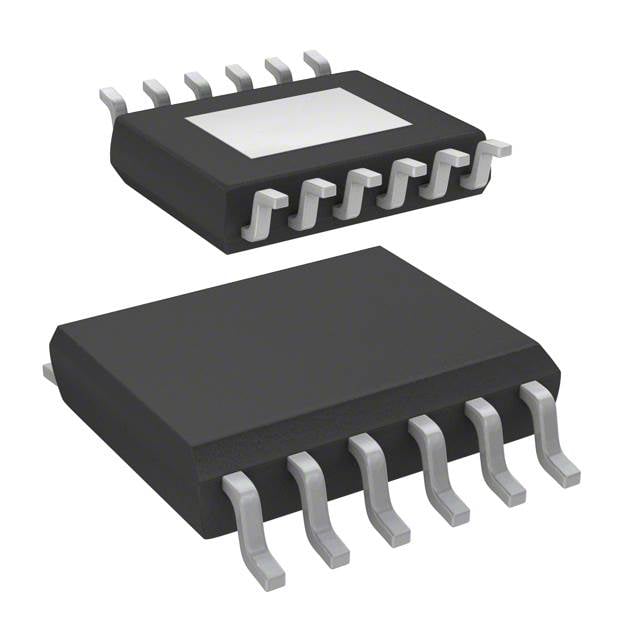

VND7050AJ12TR ST Double High-Side Driver | PowerSSO-12 | 58mΩ, 12A

Product Overview

The VND7050AJ12TR is a monolithic double high-side driver manufactured by STMicroelectronics, designed for driving resistive, inductive, and capacitive loads. It integrates two high-side switches with advanced protection features in a compact PowerSSO-12 package. The device operates with a supply voltage range from 4.5V to 36V, making it suitable for 12V and 24V automotive and industrial applications. Each channel can deliver up to 12A continuous current with a typical on-resistance of 58mΩ, ensuring efficient power management.

Detailed Technical Specifications

Key Features

• Dual high-side switch with 58mΩ RDS(on) per channel
• Wide supply voltage range: 4.5V to 36V
• High output current capability: 12A per channel
• Integrated protection: overcurrent, overtemperature, undervoltage, load dump
• Diagnostic functions: current sense and fault flag
• PowerSSO-12 package for space-constrained designs
• Compliant with automotive AEC-Q100 standard

Target Applications

The VND7050AJ12TR is ideal for automotive and industrial applications requiring robust high-side switching. Specific examples include:

• Automotive: 5G base station power distribution, dashboard lighting control, seat heating modules, and engine cooling fans
• Industrial: Programmable logic controllers (PLCs), motor control for conveyor belts, and LED lighting systems
• General: Battery management systems, power distribution units, and smart actuators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VND7050AJ12TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
