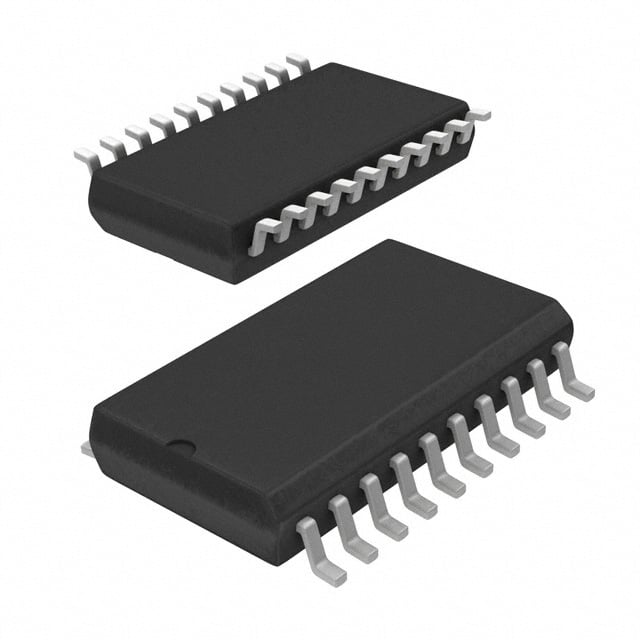

ADC0804LCWM/NOPB TI ADC | 20-SOIC | 8-Bit, 10kSPS

Product Overview

The ADC0804LCWM/NOPB is a CMOS 8-bit successive approximation analog-to-digital converter from Texas Instruments. It uses a differential potentiometric ladder and provides a microprocessor-compatible parallel output. The device operates from a single 5V power supply and features a typical conversion time of 100 µs. Housed in a 20-pin SOIC package, it is designed for easy interface with most microprocessors.

Detailed Technical Specifications

Key Features

• 8-bit resolution with ±1 LSB accuracy
• Conversion time: 100 µs typical
• Easy interface to microprocessors via tristate output latches
• Analog input voltage range: 0V to 5V (with 5V supply)
• No external clock needed (internal clock)
• Low power consumption: 12.5 mW
• Single 5V supply operation

Target Applications

The ADC0804LCWM/NOPB is ideal for applications requiring low-speed, low-power analog-to-digital conversion. Specific examples include:

• 5G base station power monitoring
• Automotive dashboard sensor interfaces
• Industrial process control (temperature, pressure)
• Battery management systems
• Portable instrumentation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADC0804LCWM/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
