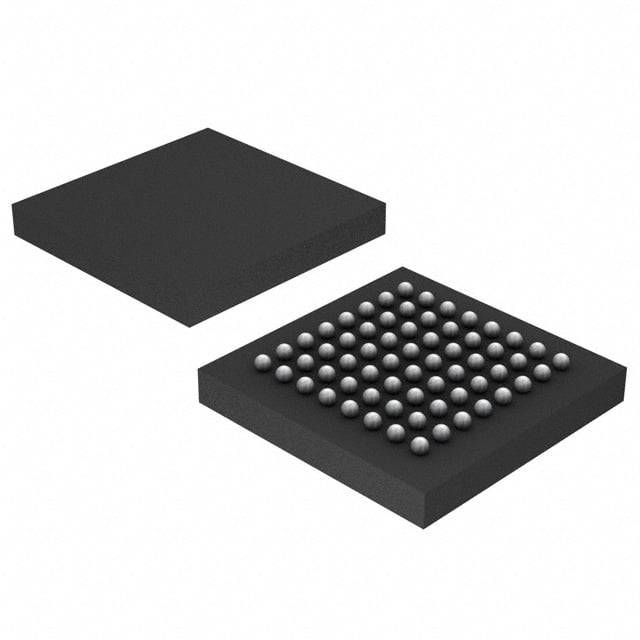

ADS1194CZXGT TI Low-Power ECG Front-End | 64-NFBGA (8x8) | 4-Ch, 16-Bit, 8kSPS

Product Overview

The ADS1194CZXGT is a low-power, 4-channel, 16-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA) and internal reference. Designed for biopotential measurements, it is ideal for electrocardiogram (ECG) and electroencephalogram (EEG) applications. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8k samples per second (SPS). It includes a right-leg drive (RLD) amplifier, lead-off detection, and a built-in oscillator. The compact 64-NFBGA (8x8 mm) package enables space-constrained designs.

Detailed Technical Specifications

Key Features

• Low power: 0.5 mW per channel
• Integrated PGA with gains of 1, 2, 3, 4, 6, 8, or 12
• Internal reference: 2.5V
• Right-leg drive amplifier
• Lead-off detection
• Built-in oscillator
• SPI-compatible serial interface
• Small 64-NFBGA package

Target Applications

• Patient monitoring systems (e.g., Philips IntelliVue MX450)
• Portable ECG devices (e.g., AliveCor KardiaMobile)
• Wearable health trackers (e.g., Fitbit Sense)
• Defibrillators (e.g., Zoll X Series)
• EEG acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1194CZXGT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
