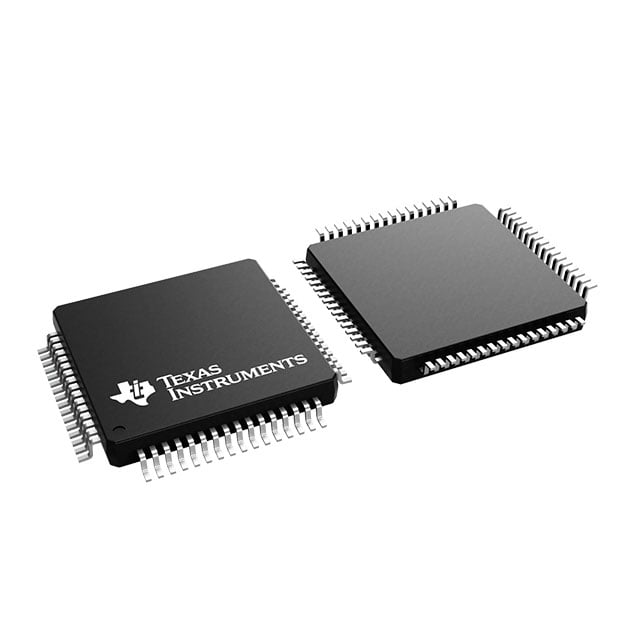

ADS1196CPAGR TI Analog Front End | 64-TQFP (10x10) | 8-Ch, 16-Bit, Low Power

Product Overview

The ADS1196CPAGR is a low-power, 8-channel, 16-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and oscillator. Designed for biopotential measurements such as ECG and EEG, it offers high resolution and low noise performance. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8 kSPS. It is housed in a compact 64-pin TQFP (10x10 mm) package, making it suitable for portable and multi-channel medical instrumentation.

Detailed Technical Specifications

Key Features

• 8-channel simultaneous sampling
• Low noise: 4 µVpp (typical)
• Built-in PGA with gains of 1, 2, 3, 4, 6, 8, or 12
• Internal reference and oscillator
• Lead-off detection
• SPI-compatible serial interface
• Low power: 0.75 mW/channel
• Small package: 64-TQFP (10x10 mm)

Target Applications

• ECG (Electrocardiogram) monitors: e.g., Philips IntelliVue patient monitors
• EEG (Electroencephalogram) systems: e.g., Neuroscan SynAmps
• Patient monitoring devices: e.g., GE Healthcare Dash series
• Wearable health trackers: e.g., Fitbit Sense
• Industrial process control: e.g., Siemens S7-1200 PLC analog input modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1196CPAGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
