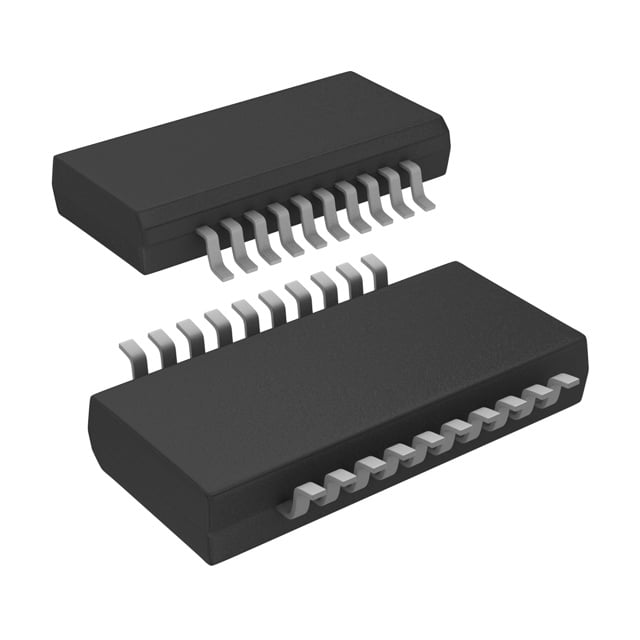

ADS1254E TI Analog-to-Digital Converter | 20-SSOP | 24-Bit, 20kSPS

Product Overview

The ADS1254E from Texas Instruments is a high-precision, 24-bit, delta-sigma analog-to-digital converter (ADC) with a maximum sampling rate of 20 kSPS. It features an integrated multiplexer, input buffer, and programmable gain amplifier (PGA), making it ideal for demanding measurement applications. The device operates from a single 5V supply and is offered in a compact 20-pin SSOP package.

Detailed Technical Specifications

Key Features

• 24-bit resolution with no missing codes
• Programmable gain amplifier (PGA) with gains of 1, 2, 4, 8, 16, 32, 64, and 128
• Low noise: 2.5µVpp at gain = 128
• Integrated input multiplexer for 4 differential or 8 single-ended inputs
• Simple SPI-compatible serial interface
• Self-calibration and system calibration options
• Low power consumption: 4.5mW typical

Target Applications

The ADS1254E is suitable for precision measurement applications such as:

• Industrial process control (e.g., PLC analog input modules)
• Weigh scales and load cell measurement
• Medical instrumentation (e.g., patient monitoring systems)
• Data acquisition systems for 5G base station power monitoring
• Automotive battery management systems (BMS) for electric vehicles
• Portable instrumentation (e.g., digital multimeters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1254E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
