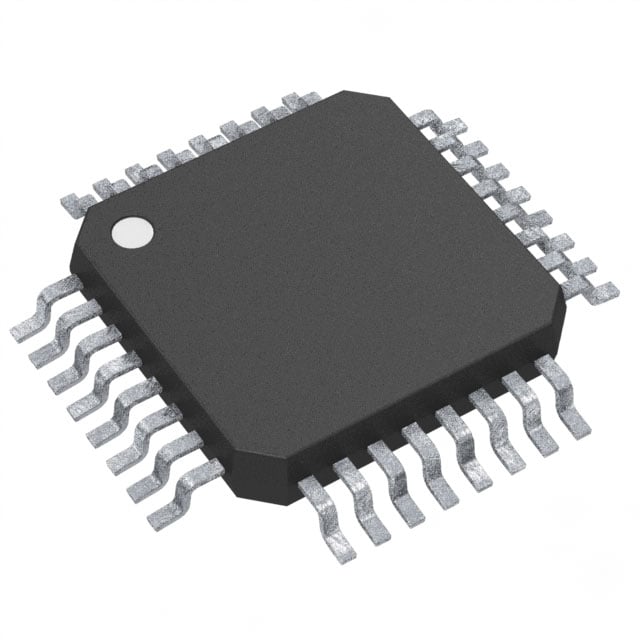

ADS1292IPBS TI Analog Front End | 32-TQFP (5x5) | 2-Ch, 24-Bit, Low-Power

Product Overview

The ADS1292IPBS is a low-power, two-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and an onboard oscillator. Designed for biopotential measurements, it offers high resolution and low noise, making it ideal for medical and industrial applications. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8 kSPS. It is housed in a compact 32-TQFP (5x5 mm) package, enabling space-constrained designs.

Detailed Technical Specifications

Key Features

• Two-channel, 24-bit ΔΣ ADC with PGA
• Low noise: 4 µVpp (typical) at 150 Hz BW
• Integrated right-leg drive (RLD) amplifier
• Lead-off detection
• Internal reference: 2.4V
• SPI-compatible serial interface
• Low power: 0.67 mW (typical) for two channels
• Power-down mode: 0.5 µA (typical)

Target Applications

• Medical: ECG, EEG, EMG, patient monitoring (e.g., Philips IntelliVue MX40)
• Industrial: Portable instrumentation, data acquisition systems
• Consumer: Wearable health monitors (e.g., Fitbit Charge 5)
• Automotive: Driver alertness detection (e.g., Tesla cabin camera)
• 5G Base Station: Vibration monitoring for predictive maintenance

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1292IPBS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
