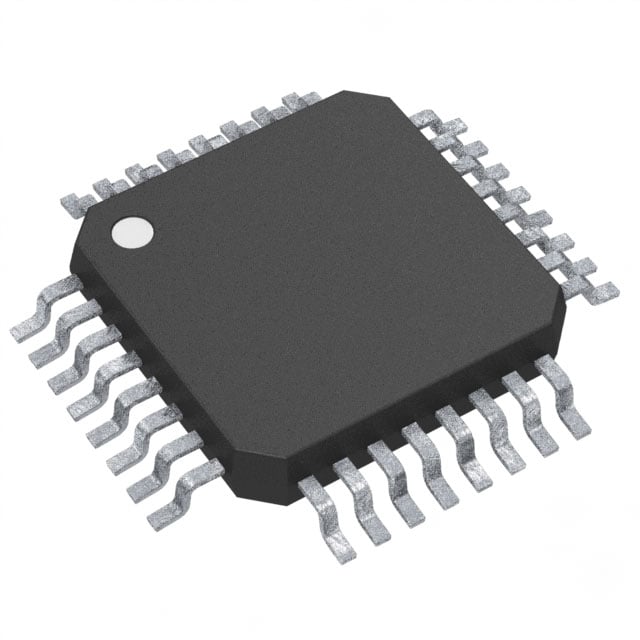

ADS1292RIPBS TI Analog Front End | 32-TQFP (5x5) | 2-Ch, 24-Bit, Low Power

Product Overview

The ADS1292RIPBS is a low-power, two-channel, 24-bit delta-sigma (ΔΣ) analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), internal reference, and an onboard oscillator. Designed specifically for biopotential measurements, it is ideal for electrocardiogram (ECG) and electroencephalogram (EEG) applications. The device operates from a single 2.7V to 5.25V supply and features a flexible input multiplexer per channel, enabling various lead configurations. The ADS1292RIPBS is offered in a compact 32-pin TQFP (5x5 mm) package, making it suitable for space-constrained medical and industrial designs.

Detailed Technical Specifications

Key Features

• Two-channel, 24-bit ΔΣ ADC with integrated PGA
• Low noise: 4 µVpp (150 Hz BW, Gain=6)
• High CMRR: 115 dB
• Flexible input multiplexer per channel
• Built-in right-leg drive (RLD) amplifier
• Lead-off detection
• Internal reference and oscillator
• SPI-compatible serial interface
• Low power: 0.75 mW/ch
• Small package: 32-TQFP (5x5 mm)

Target Applications

• Medical ECG and EEG monitoring systems (e.g., Holter monitors, patient monitors)
• Wearable health devices (e.g., fitness trackers with ECG)
• Industrial biopotential sensing (e.g., stress detection in automotive driver monitoring)
• 5G base station health monitoring (e.g., personnel safety equipment)
• Dashboard driver alertness systems (e.g., EEG-based drowsiness detection)
