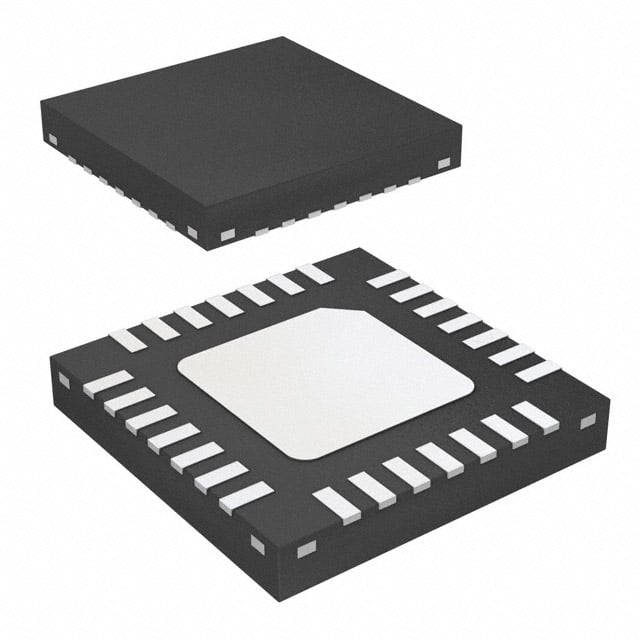

ADS1293CISQ/NOPB TI Analog Front End | 28-WQFN (5x5) | 3-Ch, 24-Bit ADC

Product Overview

The ADS1293CISQ/NOPB is a low-power, 3-channel, 24-bit delta-sigma analog front-end (AFE) from Texas Instruments, designed for biopotential measurements such as ECG and EEG. It integrates programmable gain amplifiers (PGAs), a 24-bit ADC, and a right-leg drive amplifier in a compact 28-WQFN (5x5 mm) package. The device operates from a single 2.7V to 5.25V supply and features a data rate up to 8 kSPS per channel. It includes a built-in oscillator, reference, and SPI interface for easy integration.

Detailed Technical Specifications

Key Features

• Three low-noise PGAs with 24-bit delta-sigma ADC
• Integrated right-leg drive amplifier
• Built-in oscillator and reference
• Lead-off detection and DC offset cancellation
• SPI-compatible serial interface
• Low power: 0.5 mW/channel
• Small footprint: 5x5 mm QFN

Target Applications

• Medical ECG/EKG monitors (e.g., Holter monitors, patient monitors)
• Wearable health devices (e.g., fitness trackers, smartwatches)
• Industrial process control (e.g., temperature, pressure sensors)
• 5G base station power monitoring
• Automotive dashboard sensor interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1293CISQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
