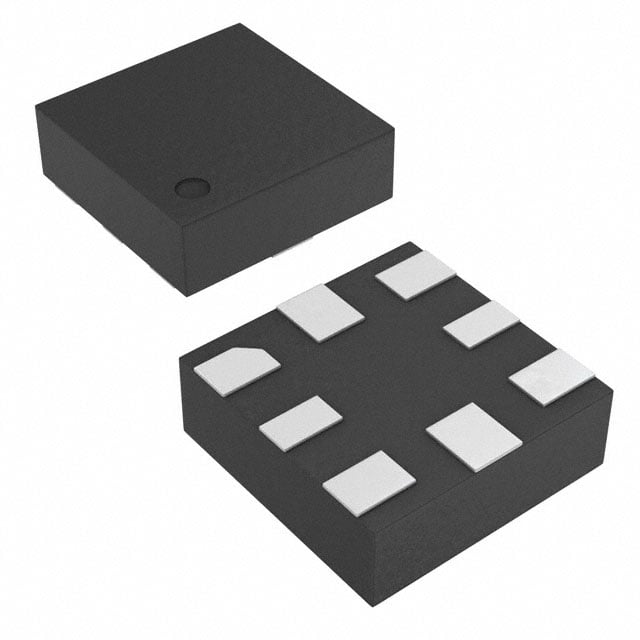

ADS7041IRUGR TI Analog-to-Digital Converter | 8-X2QFN (1.5x1.5) | 12-bit, 1 MSPS, Single Channel

Product Overview

The ADS7041IRUGR is a high-performance, 12-bit, 1 MSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It operates from a single 2.35V to 3.6V supply and features a single-ended input with a wide input range. The device is housed in a compact 8-pin X2QFN package (1.5mm x 1.5mm), making it ideal for space-constrained applications. The ADS7041IRUGR offers excellent linearity and low power consumption, with an active power dissipation of only 1.5 mW at 1 MSPS. It includes an internal reference and a serial peripheral interface (SPI) for easy communication with microcontrollers and DSPs.

Detailed Technical Specifications

Key Features

• 12-bit resolution with 1 MSPS sampling rate
• Ultra-small 8-X2QFN package (1.5mm x 1.5mm)
• Low power consumption: 1.5 mW at 1 MSPS
• Single-ended input with wide input range
• Internal reference (2.5V or 3.3V)
• SPI-compatible serial interface
• Excellent DC and AC performance
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station transceiver monitoring
• Automotive dashboard displays and sensor interfaces
• Portable instrumentation and data acquisition systems
• Battery-powered IoT devices
• Industrial process control and automation
• Medical devices such as patient monitors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7041IRUGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ADS7041IRUGR 是德州儀器（TI）推出的一款高性能12位、1 MSPS逐次逼近寄存器（SAR）模數轉換器（ADC）。它採用2.35V至3.6V單電源供電，具有單端輸入和寬輸入範圍。器件採用緊湊的8引腳X2QFN封裝（1.5mm x 1.5mm），非常適合空間受限的應用。ADS7041IRUGR 具有出色的線性度和低功耗，在1 MSPS採樣率下功耗僅為1.5 mW。它包含內部基準電壓和串行外設接口（SPI），便於與微控制器和DSP通信。

詳細技術參數

核心特性

• 12位分辨率，1 MSPS採樣率
• 超小8-X2QFN封裝（1.5mm x 1.5mm）
• 低功耗：1 MSPS時僅1.5 mW
• 單端輸入，寬輸入範圍
• 內部基準電壓（2.5V或3.3V）
• SPI兼容串行接口
• 出色的直流和交流性能
• 寬工作溫度範圍：-40°C至+125°C

典型應用場景

• 5G基站收發器監控
• 汽車儀表盤顯示和傳感器接口
• 便攜式儀器和數據採集系統
• 電池供電的物聯網設備
• 工業過程控制和自動化
• 醫療設備如病人監護儀

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ADS7041IRUGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
