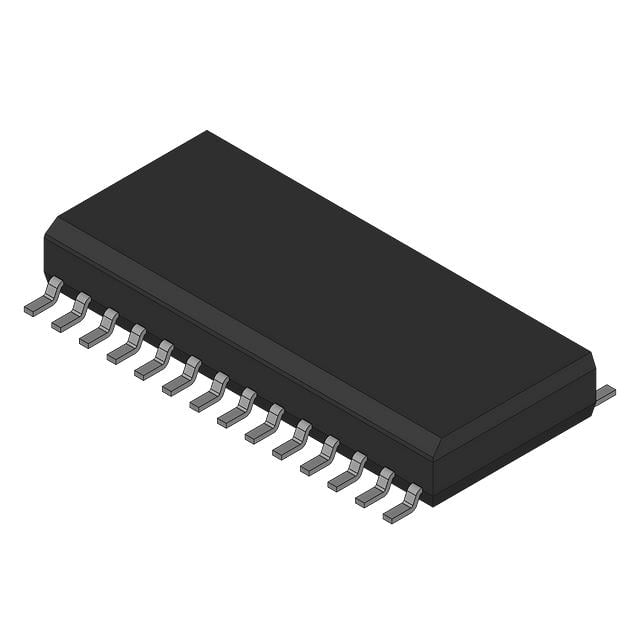

ADS7824U/1K TI Analog-to-Digital Converter | 28-SOIC | 12-Bit, 4-Channel

Product Overview

The ADS7824U/1K is a 12-bit, 4-channel analog-to-digital converter (ADC) from Texas Instruments. It features a successive approximation register (SAR) architecture with a maximum sampling rate of 100 kSPS. The device operates from a single +5V supply and includes an internal 2.5V reference. It is available in a 28-pin SOIC package and is specified for the industrial temperature range (-40°C to +85°C). The ADS7824U/1K offers parallel data output and is ideal for applications requiring high accuracy and low power consumption.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• 4-channel multiplexer with sample-and-hold
• 100 kSPS maximum sampling rate
• Single +5V supply operation
• Internal 2.5V reference (drift: 25 ppm/°C typical)
• Low power: 50 mW typical
• Parallel data output with three-state buffers
• Pin-compatible with ADS7824 and ADS7825

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., portable instrumentation)
• Medical equipment (e.g., patient monitoring systems)
• Automotive (e.g., battery management systems)
• Communication infrastructure (e.g., 5G base station power monitoring)
• Test and measurement (e.g., digital multimeters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7824U/1K. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
