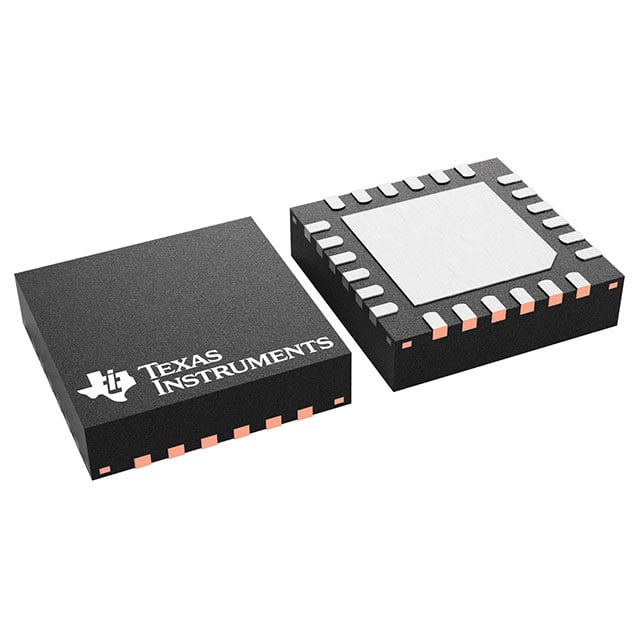

ADS7954SRGET TI ADC | 24-VQFN (4x4) | 4-Ch, 12-Bit, 1MSPS, SPI

Product Overview

The ADS7954SRGET is a 4-channel, 12-bit, successive-approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It features a maximum sampling rate of 1 MSPS and operates from a single 2.7V to 5.25V supply. The device includes an internal reference (2.5V) and a 4-channel multiplexer, making it ideal for multi-channel data acquisition systems. The SPI-compatible serial interface simplifies connection to microcontrollers and DSPs. Housed in a compact 24-VQFN (4x4 mm) package, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• 4-channel, 12-bit SAR ADC with 1 MSPS throughput
• Internal 2.5V reference with 0.5% accuracy
• SPI-compatible serial interface (up to 20 MHz)
• Low power: 12 mW at 1 MSPS, 1 µA shutdown current
• Wide supply range: 2.7V to 5.25V
• Analog input range: 0V to VREF (internal or external)
• No missing codes over temperature
• Small 4x4 mm VQFN package

Target Applications

• 5G base station power monitoring (e.g., voltage/current sensing of PA modules)
• Automotive dashboard sensor acquisition (e.g., battery voltage, temperature)
• Industrial process control (e.g., 4-20 mA loop monitoring)
• Portable instrumentation (e.g., multimeters, data loggers)
• Medical devices (e.g., patient monitoring, glucose meters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7954SRGET. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
