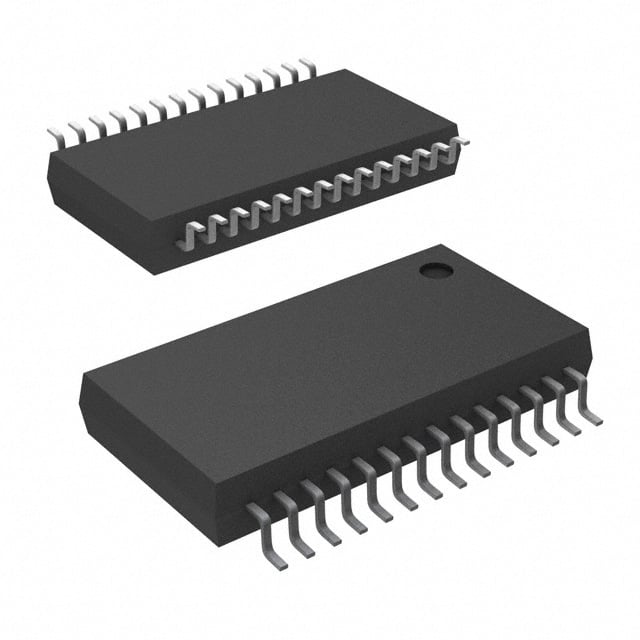

ADS826E TI ADC | 28-SSOP | 10-Bit, 60MSPS, 5V Supply

Product Overview

The ADS826E is a high-speed, 10-bit analog-to-digital converter (ADC) from Texas Instruments. It operates at a maximum sampling rate of 60 MSPS and is designed for applications requiring high dynamic performance and low power consumption. The device is housed in a compact 28-pin SSOP package, making it suitable for space-constrained designs. With a single 5V supply and internal reference, the ADS826E simplifies system design while delivering excellent signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR).

Detailed Technical Specifications

Key Features

• 10-bit resolution with 60 MSPS sampling rate
• Low power: 275 mW typical at 60 MSPS
• Single 5V supply operation
• Internal reference and track-and-hold
• Excellent dynamic performance: 59 dB SNR, 72 dBc SFDR
• Differential input with 2 Vpp range
• Output data in offset binary or two's complement
• Small 28-pin SSOP package

Target Applications

• Wireless communication base stations (e.g., 5G NR small cells)
• Medical imaging systems (e.g., ultrasound beamforming)
• Test and measurement equipment (e.g., oscilloscopes, spectrum analyzers)
• Radar and electronic warfare systems
• Industrial video processing (e.g., high-speed cameras)
• Automotive driver assistance systems (e.g., radar sensors)
