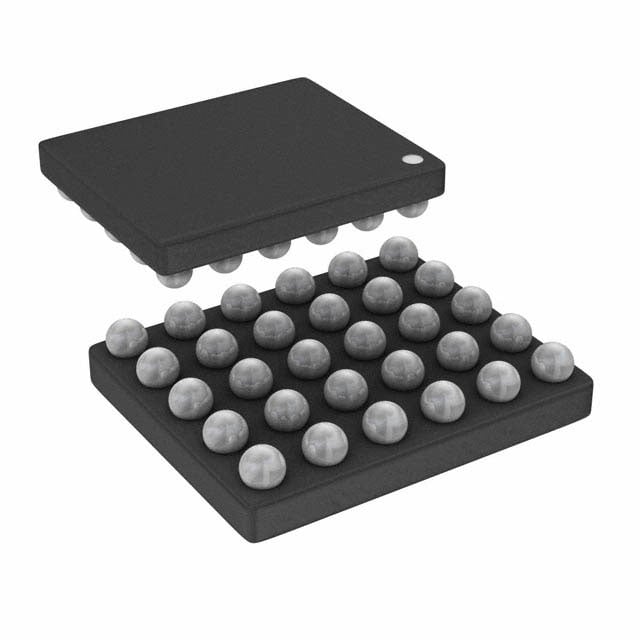

AFE49I30YZT TI Analog Front End | 30-DSBGA | 4-Ch, 16-Bit, 125kSPS

Product Overview

The AFE49I30YZT is a high-performance analog front-end (AFE) from Texas Instruments, designed for precision data acquisition systems. Housed in a compact 30-ball DSBGA package, it integrates a 4-channel, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) with a maximum sampling rate of 125 kSPS per channel. The device features a low-power consumption of 2.5 mW per channel at 125 kSPS, making it ideal for battery-powered and portable applications. It includes an internal reference, reference buffer, and programmable gain amplifier (PGA) with gains of 1, 2, 4, and 8, simplifying system design and reducing external component count.

Detailed Technical Specifications

Key Features

• 4-channel, 16-bit SAR ADC with 125 kSPS per channel
• Low power: 2.5 mW/ch at 125 kSPS
• Integrated PGA with gains 1, 2, 4, 8
• Internal reference and reference buffer
• SPI-compatible serial interface
• Small 30-ball DSBGA package (2.5 mm × 2.5 mm)
• Wide supply range: 2.7 V to 5.5 V
• Extended temperature range: -40°C to +125°C

Target Applications

• 5G base station: RF power monitoring, antenna calibration
• Automotive dashboard: Battery voltage and current sensing
• Industrial process control: Multi-channel sensor data acquisition
• Portable medical devices: ECG, EEG signal acquisition
• Data acquisition systems: High-precision multi-channel logging

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AFE49I30YZT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
