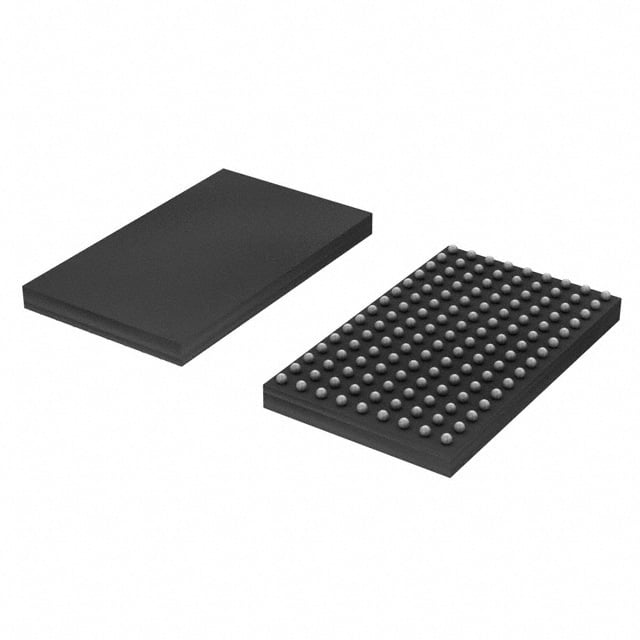

AFE5804ZCF TI Analog Front End | 135-NFBGA(15X9) | 8-Ch, 14-Bit, 65MSPS

Product Overview

The AFE5804ZCF is a high-performance analog front-end (AFE) from Texas Instruments, designed for ultrasound imaging and other medical applications. It integrates eight channels of low-noise amplifiers (LNAs), variable gain amplifiers (VGAs), anti-aliasing filters, and 14-bit analog-to-digital converters (ADCs) with sampling rates up to 65 MSPS. The device is housed in a compact 135-ball NFBGA (15x9 mm) package, enabling high-density system designs.

Detailed Technical Specifications

Key Features

• 8-channel integrated AFE with LNA, VGA, filter, and ADC
• Low noise: 0.85 nV/√Hz input-referred
• Programmable gain up to 48 dB
• 14-bit ADC with 65 MSPS sampling
• Built-in anti-aliasing filter with programmable bandwidth
• Low power: 85 mW per channel
• Small footprint: 15x9 mm NFBGA package
• Serial LVDS interface for data output

Target Applications

• Medical ultrasound imaging systems (e.g., GE Voluson, Philips EPIQ)
• Portable ultrasound devices (e.g., Butterfly iQ, Clarius)
• Sonar and underwater acoustic imaging
• Non-destructive testing (NDT) equipment
• High-speed data acquisition systems
