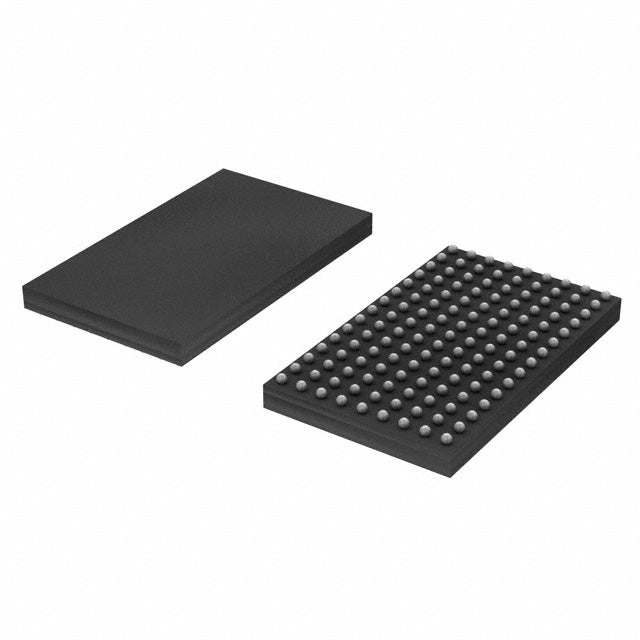

AFE5808AZCF TI Analog Front-End | 135-NFBGA(15X9) | 8-Ch, 65MSPS, 14-Bit

Product Overview

The AFE5808AZCF is a high-performance analog front-end (AFE) from Texas Instruments, designed for ultrasound imaging and other medical imaging applications. It integrates eight channels of low-noise amplifiers (LNAs), variable gain amplifiers (VGAs), anti-aliasing filters, and 14-bit analog-to-digital converters (ADCs) operating at up to 65 MSPS. The device is housed in a compact 135-ball NFBGA (15x9 mm) package, enabling high-density system designs.

Detailed Technical Specifications

Key Features

• 8-channel integrated AFE with LNA, VGA, filter, and ADC
• Low noise: 0.85 nV/√Hz input-referred
• High dynamic range: 75 dB SNR at 5 MHz
• Programmable gain and filter bandwidth
• Low power: 125 mW per channel
• Small footprint: 15x9 mm NFBGA package
• Digital I/O: LVDS outputs for data
• On-chip voltage reference and bias circuits

Target Applications

• Medical ultrasound imaging systems (e.g., GE Logiq, Philips Affiniti)
• Portable ultrasound scanners (e.g., Butterfly iQ)
• Sonar and underwater acoustic imaging
• Non-destructive testing (NDT) equipment
• Radar and communication systems requiring high-speed analog front-end

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AFE5808AZCF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
