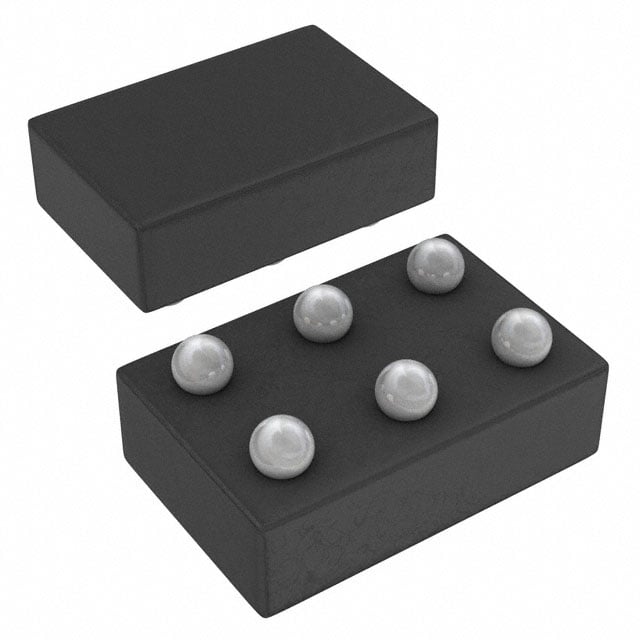

BQ25101YFPT TI Battery Charger IC | 6-DSBGA | 4.2V, 250mA

Product Overview

The BQ25101YFPT is a highly integrated linear battery charger IC from Texas Instruments, designed for single-cell Li-Ion and Li-Polymer batteries. Housed in a compact 6-pin DSBGA package (0.9mm x 1.3mm), it offers a complete charging solution with minimal external components. The device operates from a 4.5V to 6.5V input and provides up to 250mA charge current with ±0.5% voltage accuracy at 4.2V. It includes safety features such as thermal regulation, pre-conditioning, and termination.

Detailed Technical Specifications

Key Features

• High accuracy voltage regulation: ±0.5%
• Low dropout voltage: 150mV at 250mA
• Integrated power FET and current sensor
• No external blocking diode required
• Thermal regulation and protection
• Preconditioning for deeply discharged batteries
• Charge status indicator
• Small footprint: 6-DSBGA

Target Applications

• Wearable devices (e.g., smartwatches, fitness bands)
• Bluetooth headsets and earbuds
• Portable medical devices (e.g., glucose monitors)
• IoT sensors and beacons
• Remote controls and key fobs
• Small form-factor battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BQ25101YFPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BQ25101YFPT 是德州儀器（TI）推出的一款高度集成的線性電池充電器 IC，專為單節鋰離子/鋰聚合物電池設計。採用緊湊的 6 引腳 DSBGA 封裝（0.9mm x 1.3mm），以最少的外部元件提供完整的充電解決方案。該器件工作電壓範圍為 4.5V 至 6.5V，可提供高達 250mA 的充電電流，充電電壓精度為 ±0.5%（4.2V）。內置熱調節、預充電和終止等安全功能。

詳細技術參數

核心特性

• 高精度電壓調節：±0.5%
• 低壓差：150mV @ 250mA
• 集成功率 FET 和電流檢測
• 無需外部阻塞二極管
• 熱調節和保護
• 深度放電電池預充電
• 充電狀態指示
• 小尺寸：6-DSBGA

典型應用場景

• 可穿戴設備（如智能手錶、健身手環）
• 藍牙耳機和耳塞
• 便攜醫療設備（如血糖監測儀）
• 物聯網傳感器和信標
• 遙控器和鑰匙扣
• 小型電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BQ25101YFPT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
