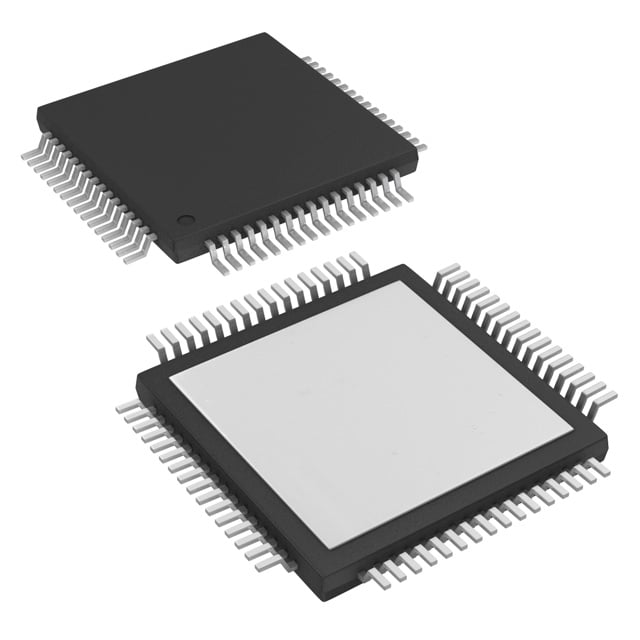

BQ76PL536TPAPTQ1 TI Battery Monitor | 64-HTQFP (10X10) | 6-Ch, 18V, SPI

Product Overview

The BQ76PL536TPAPTQ1 is a high-performance, automotive-grade battery monitor and protector IC from Texas Instruments. It is designed for multi-cell lithium-ion battery stacks, supporting up to 6 series cells with an absolute maximum voltage of 18V per cell. The device integrates precision voltage measurement, cell balancing, and comprehensive protection features, making it ideal for demanding applications such as electric vehicles (EVs), hybrid electric vehicles (HEVs), and energy storage systems. Housed in a compact 64-pin HTQFP (10x10mm) package, it offers robust communication via SPI interface and operates over a wide temperature range (-40°C to +125°C).

Detailed Technical Specifications

Key Features

• Precision voltage monitoring for up to 6 series cells with ±1 mV accuracy
• Integrated passive cell balancing with internal FETs
• Comprehensive protection: overvoltage, undervoltage, overtemperature, and short-circuit
• SPI interface for data communication and configuration
• Low power consumption: 60 µA typical in normal operation
• AEC-Q100 qualified for automotive applications
• Wide operating temperature range: -40°C to +125°C
• Compact 64-pin HTQFP package (10x10mm)

Target Applications

• Electric vehicles (EVs) and hybrid electric vehicles (HEVs) – e.g., battery management systems for Tesla Model 3 or Nissan Leaf
• Energy storage systems (ESS) – e.g., grid-scale battery banks for solar farms
• 5G base station backup batteries – e.g., lithium-ion battery packs for Huawei or Ericsson base stations
• Industrial battery packs – e.g., forklift batteries or UPS systems
• Automotive dashboard power supplies – e.g., infotainment system battery monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BQ76PL536TPAPTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
