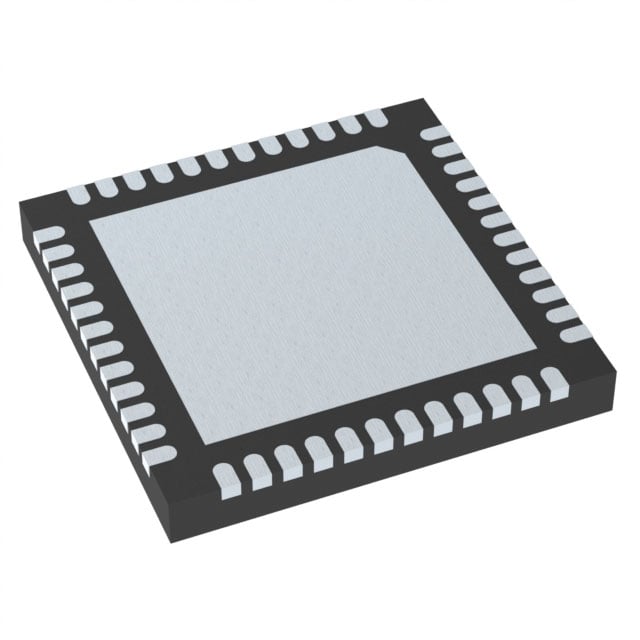

CDCDB803ERSLT TI Clock Buffer | 48-VQFN (6x6) | 8 Outputs, 1.5 GHz

Product Overview

The CDCDB803ERSLT is a high-performance clock buffer from Texas Instruments, designed to distribute low-jitter clock signals with minimal skew. Housed in a compact 48-VQFN (6x6 mm) package, it supports up to 8 differential outputs and operates at frequencies up to 1.5 GHz. This device is ideal for demanding applications such as 5G base stations, data centers, and high-speed networking equipment.

Detailed Technical Specifications

Key Features

• Low additive jitter: 0.1 ps RMS typical
• Ultra-low output skew: 20 ps max
• Supports 1.8 V, 2.5 V, and 3.3 V supply voltages
• 8 differential outputs (LVPECL, LVDS, HCSL compatible)
• Fail-safe input and output enable control
• Industrial temperature range: -40°C to +105°C

Target Applications

• 5G base stations (e.g., Massive MIMO, remote radio units)
• Data center switches and routers (e.g., 400G Ethernet)
• High-speed ADC/DAC clock distribution
• Automotive infotainment and ADAS (e.g., dashboard, radar)
• FPGA and SoC reference clock buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCDB803ERSLT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCDB803ERSLT 是德州儀器（TI）推出的一款高性能時鐘緩衝器，專為低抖動時鐘信號分配而設計，具有極小的偏斜。該器件採用緊湊的 48-VQFN（6x6 mm）封裝，支持多達 8 個差分輸出，工作頻率高達 1.5 GHz。非常適合 5G 基站、數據中心以及高速網絡設備等嚴苛應用。

詳細技術參數

核心特性

• 低附加抖動：典型值 0.1 ps RMS
• 超低輸出偏斜：最大值 20 ps
• 支持 1.8 V、2.5 V 和 3.3 V 供電電壓
• 8 個差分輸出（兼容 LVPECL、LVDS、HCSL）
• 故障安全輸入和輸出使能控制
• 工業級溫度範圍：-40°C 至 +105°C

典型應用場景

• 5G 基站（例如大規模 MIMO、遠程射頻單元）
• 數據中心交換機和路由器（例如 400G 以太網）
• 高速 ADC/DAC 時鐘分配
• 汽車信息娛樂和 ADAS（例如儀表板、雷達）
• FPGA 和 SoC 參考時鐘緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CDCDB803ERSLT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
