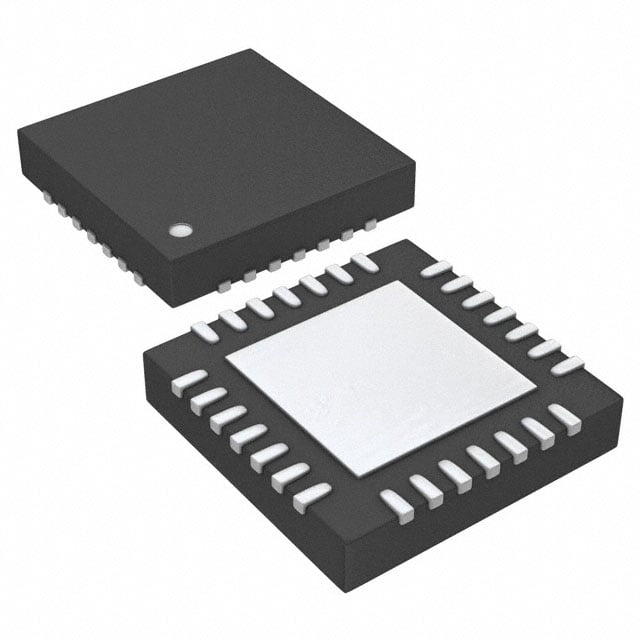

CDCLVD1208RHDR TI Clock Buffer | 28-VQFN (5x5) | 1.8V, 2.5V, 3.3V, LVDS

Product Overview

The CDCLVD1208RHDR from Texas Instruments is a high-performance, low-jitter LVDS clock buffer designed for clock distribution in demanding applications. It features eight LVDS outputs with a fanout of 1:8, supporting clock frequencies up to 1.5 GHz. The device operates from a single 1.8V, 2.5V, or 3.3V supply and is housed in a compact 28-pin VQFN (5x5 mm) package. With additive jitter as low as 0.1 ps RMS (typical), it ensures signal integrity for high-speed digital systems.

Detailed Technical Specifications

Key Features

• Eight LVDS outputs with 1:8 fanout
• Low additive jitter: 0.1 ps RMS typical
• Wide frequency range up to 1.5 GHz
• Multiple input types: LVDS, LVPECL, HSTL, SSTL, HCSL
• Single supply: 1.8V, 2.5V, or 3.3V
• Fail-safe input
• Industrial temperature range: -40°C to +85°C
• Small 5x5 mm VQFN package

Target Applications

The CDCLVD1208RHDR is ideal for clock distribution in high-speed communication systems, including 5G base stations, data centers, and networking equipment. It is also suitable for test and measurement instruments, medical imaging systems, and automotive advanced driver-assistance systems (ADAS) such as radar and lidar modules. Specific product examples include 5G massive MIMO base stations, 400G Ethernet switches, and high-resolution ultrasound machines.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCLVD1208RHDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCLVD1208RHDR 是德州儀器（TI）推出的一款高性能、低抖動 LVDS 時鐘緩衝器，專為要求嚴苛的時鐘分配應用而設計。它提供八個 LVDS 輸出，扇出比為 1:8，支持高達 1.5 GHz 的時鐘頻率。該器件可在 1.8V、2.5V 或 3.3V 單電源下工作，並採用緊湊的 28 引腳 VQFN（5x5 mm）封裝。典型附加抖動低至 0.1 ps RMS，確保高速數字系統的信號完整性。

詳細技術參數

核心特性

• 八個 LVDS 輸出，1:8 扇出
• 低附加抖動：典型值 0.1 ps RMS
• 寬頻率範圍，最高 1.5 GHz
• 多種輸入類型：LVDS, LVPECL, HSTL, SSTL, HCSL
• 單電源：1.8V, 2.5V 或 3.3V
• 故障安全輸入
• 工業溫度範圍：-40°C 至 +85°C
• 小型 5x5 mm VQFN 封裝

典型應用場景

CDCLVD1208RHDR 適用於高速通信系統中的時鐘分配，包括 5G 基站、數據中心和網絡設備。它還適用於測試測量儀器、醫療成像系統以及汽車高級駕駛輔助系統（ADAS），如雷達和激光雷達模塊。具體產品示例包括 5G 大規模 MIMO 基站、400G 以太網交換機和高分辨率超聲診斷設備。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CDCLVD1208RHDR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
