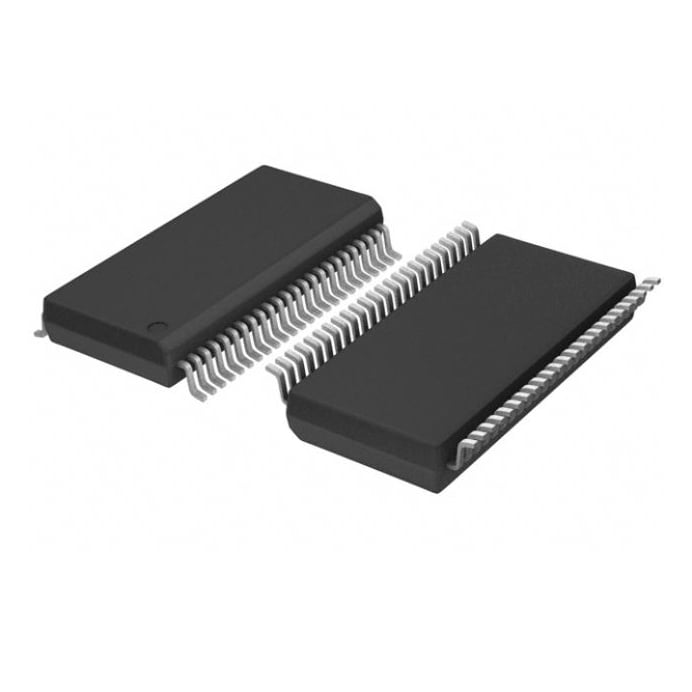

CDCV857BIDGGR TI Clock Buffer | 48-TSSOP | 1.8V, 250MHz, 1:10

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The CDCV857BIDGGR from Texas Instruments is a high-performance 1:10 clock buffer designed for low-jitter, low-skew clock distribution in demanding applications. Operating from a 1.8V supply, it supports frequencies up to 250 MHz and features differential clock inputs (CLK, CLK#) and 10 differential outputs (Q0–Q9, Q0#–Q9#). The device is housed in a compact 48-pin TSSOP package, making it ideal for space-constrained designs. With typical additive jitter of less than 0.2 ps RMS and output-to-output skew of 20 ps, it ensures precise timing integrity for high-speed digital systems.

Detailed Technical Specifications

Parameter Value
Supply Voltage 1.8V ± 0.1V
Input Frequency DC to 250 MHz
Output Frequency DC to 250 MHz
Number of Outputs 10 (differential)
Additive Jitter (RMS) < 0.2 ps (typical)
Output-to-Output Skew < 20 ps (typical)
Propagation Delay 2.5 ns (typical)
Input Type Differential (CLK, CLK#)
Output Type Differential (LVDS-like)
Operating Temperature -40°C to +85°C
Package 48-TSSOP

Key Features

  • 1:10 differential clock buffer with low additive jitter (< 0.2 ps RMS)
  • Wide frequency range: DC to 250 MHz
  • Low output-to-output skew: < 20 ps
  • Single 1.8V supply operation
  • Differential input and output for noise immunity
  • Small 48-pin TSSOP package
  • Industrial temperature range: -40°C to +85°C

Target Applications

  • 5G base station clock distribution (e.g., for FPGA or ASIC reference clocks)
  • Data center switches and routers (e.g., for synchronizing high-speed SerDes)
  • Automotive advanced driver-assistance systems (ADAS) (e.g., for camera and radar modules)
  • Test and measurement equipment (e.g., for low-jitter clock distribution in oscilloscopes)
  • Industrial automation (e.g., for PLC and motion control systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCV857BIDGGR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCV857BIDGGR 是德州儀器(TI)推出的一款高性能 1:10 時鐘緩衝器,專為低抖動、低偏移的時鐘分配而設計,適用於要求嚴苛的應用。該器件工作在 1.8V 電源電壓下,支持高達 250 MHz 的頻率,並具有差分時鐘輸入(CLK, CLK#)和 10 路差分輸出(Q0–Q9, Q0#–Q9#)。器件採用緊湊的 48 引腳 TSSOP 封裝,非常適合空間受限的設計。典型附加抖動小於 0.2 ps RMS,輸出間偏移為 20 ps,確保高速數字系統的精確時序完整性。

詳細技術參數

參數 數值
電源電壓 1.8V ± 0.1V
輸入頻率 DC 至 250 MHz
輸出頻率 DC 至 250 MHz
輸出數量 10(差分)
附加抖動(RMS) < 0.2 ps(典型值)
輸出間偏移 < 20 ps(典型值)
傳播延遲 2.5 ns(典型值)
輸入類型 差分(CLK, CLK#)
輸出類型 差分(類似 LVDS)
工作溫度 -40°C 至 +85°C
封裝 48-TSSOP

核心特性

  • 1:10 差分時鐘緩衝器,低附加抖動(< 0.2 ps RMS)
  • 寬頻率範圍:DC 至 250 MHz
  • 低輸出間偏移:< 20 ps
  • 單一 1.8V 電源供電
  • 差分輸入和輸出,抗噪聲能力強
  • 小型 48 引腳 TSSOP 封裝
  • 工業溫度範圍:-40°C 至 +85°C

典型應用場景

  • 5G 基站時鐘分配(例如,為 FPGA 或 ASIC 提供參考時鐘)
  • 數據中心交換機和路由器(例如,同步高速 SerDes)
  • 汽車高級駕駛輔助系統(ADAS)(例如,攝像頭和雷達模塊)
  • 測試與測量設備(例如,示波器中的低抖動時鐘分配)
  • 工業自動化(例如,PLC 和運動控制系統)

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 CDCV857BIDGGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
