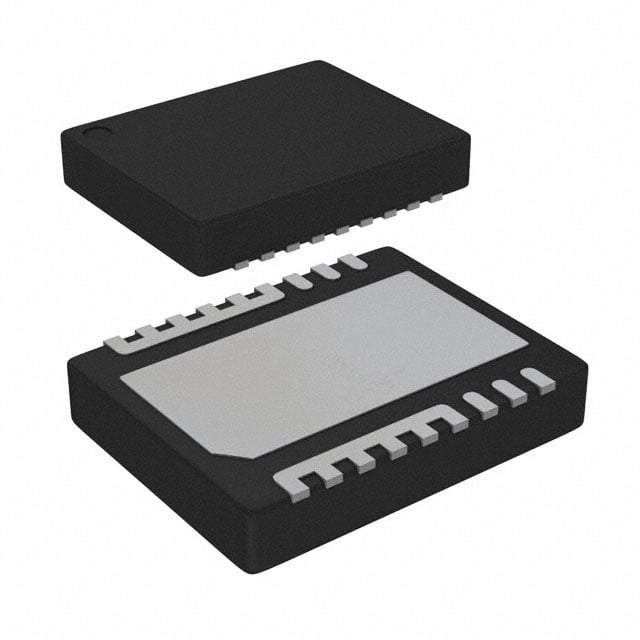

CSD97396Q4M TI NexFET Power Stage | 8-VSON (3.5x4.5) | 30A, 5V Gate Drive

Product Overview

The CSD97396Q4M is a highly integrated NexFET power stage from Texas Instruments, designed for high-current, high-efficiency synchronous buck converters. It combines a driver IC with two NexFET power MOSFETs in a compact 8-VSON (3.5x4.5) package. This device is optimized for multi-phase applications, delivering up to 30A continuous current with excellent thermal performance.

Detailed Technical Specifications

Key Features

• Integrated driver and MOSFETs for reduced parasitics
• Low RDS(on) for high efficiency
• Supports high switching frequency up to 2 MHz
• Thermally enhanced package with exposed pad
• 3.3V and 5V PWM logic compatible
• Enable and fault reporting functions

Target Applications

• 5G base station power supplies (e.g., remote radio units)
• Server and telecom VRMs (e.g., Intel VR12/VR13)
• Graphics card Vcore regulators (e.g., NVIDIA GeForce RTX 30 series)
• Industrial DC-DC converters (e.g., 48V to 12V intermediate bus)
• Automotive infotainment and dashboard power (e.g., 12V to 1.8V)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CSD97396Q4M. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
