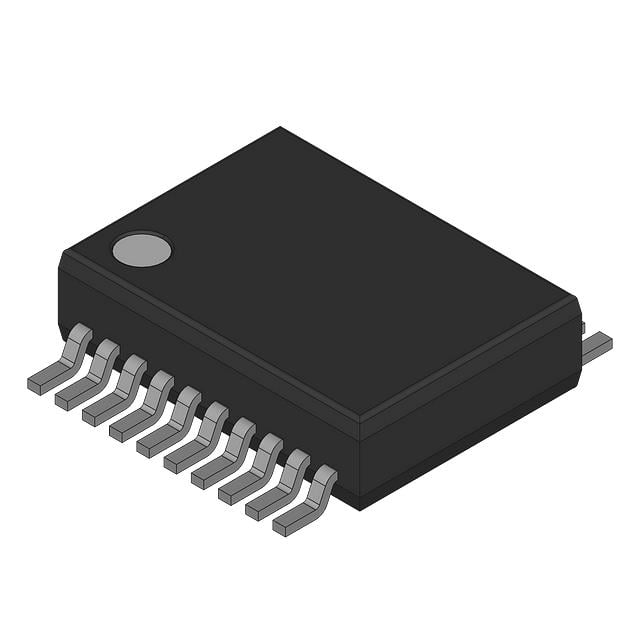

CY74FCT2244TQC TI Buffer/Driver | | 4.5V-5.5V, 8-Ch, Non-Inverting

Product Overview

The CY74FCT2244TQC from Texas Instruments is a high-performance, non-inverting octal buffer and line driver designed for 5V logic systems. It features 8-bit wide data paths with 3-state outputs, making it ideal for bus-oriented applications. The device operates over a supply voltage range of 4.5V to 5.5V and offers high drive capability with balanced sink and source currents. Its advanced BiCMOS technology ensures low power consumption while maintaining high speed. The CY74FCT2244TQC is available in a QSOP package, providing a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• Non-inverting octal buffer/line driver with 3-state outputs
• High drive capability: IOH = -32 mA, IOL = 64 mA
• Low power consumption: ICC = 10 µA (max) in standby
• Fast propagation delay: 4.6 ns typical at 5V
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 250 mA per JESD 17
• Available in QSOP-20 package for space-saving

Target Applications

• 5G base station control logic: buffering address/data lines between FPGA and memory
• Automotive dashboard display: driving LED indicators and segment displays
• Industrial automation PLC: interfacing sensors and actuators with backplane bus
• Telecommunications equipment: signal buffering for backplane and line cards
• Medical imaging systems: data bus isolation and drive for high-speed ADCs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY74FCT2244TQC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
