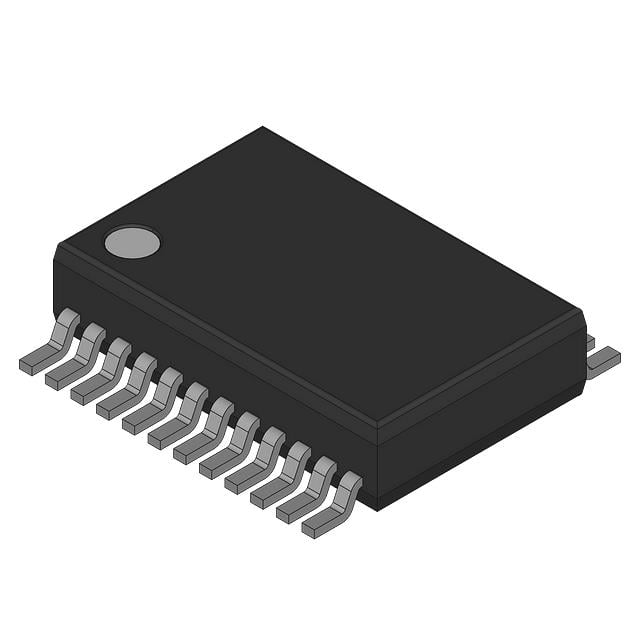

CY74FCT841CTQC TI Latches | 10-bit D-Type | 4.5V-5.5V, 25mA Output

Product Overview

The CY74FCT841CTQC from Texas Instruments is a high-performance 10-bit D-type latch designed for bus-oriented applications. It features 3-state outputs, making it ideal for driving high-capacitance loads while maintaining signal integrity. Operating from a 5V supply, this device offers a balanced combination of speed and power efficiency, with a typical propagation delay of 6.5 ns and a maximum quiescent current of 500 µA. The latch is transparent when the latch enable (LE) input is high, and stores data when LE is low. The output enable (OE) control allows the outputs to be placed in a high-impedance state for bus sharing.

Detailed Technical Specifications

Key Features

• 10-bit D-type transparent latch with 3-state outputs
• Wide operating voltage range: 4.5V to 5.5V
• High drive capability: ±24 mA at 5V
• Fast propagation delay: 6.5 ns typical
• Low power consumption: 500 µA max quiescent current
• Input hysteresis for noise immunity
• Compatible with TTL and CMOS logic levels
• Available in SSOP-24 package for space-constrained designs

Target Applications

• 5G base station control logic: Used for latching configuration data in beamforming modules
• Automotive dashboard displays: Stores segment data for LCD or LED indicators
• Industrial PLC I/O modules: Buffers and latches sensor inputs for processing
• Telecommunications routers: Holds routing table entries during updates
• Medical imaging equipment: Latches pixel data in ultrasound or MRI systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY74FCT841CTQC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY74FCT841CTQC 是德州儀器推出的一款高性能 10 位 D 型鎖存器，專為匯流排應用設計。它具備三態輸出，能夠在驅動高電容負載的同時保持信號完整性。該器件工作在 5V 電源下，典型傳播延遲為 6.5 ns，最大靜態電流為 500 µA，在速度和功耗之間實現了良好平衡。當鎖存使能 (LE) 輸入為高電平時，鎖存器透明傳輸數據；LE 為低電平時則存儲數據。輸出使能 (OE) 控制可將輸出置為高阻抗狀態，便於匯流排共享。

詳細技術參數

核心特性

• 10 位 D 型透明鎖存器，帶三態輸出
• 寬工作電壓範圍：4.5V 至 5.5V
• 高驅動能力：±24 mA @ 5V
• 快速傳播延遲：典型值 6.5 ns
• 低功耗：最大靜態電流 500 µA
• 輸入遲滯，增強抗噪能力
• 兼容 TTL 和 CMOS 邏輯電平
• 採用 SSOP-24 封裝，節省空間

典型應用場景

• 5G 基站控制邏輯：用於鎖存波束賦形模塊的配置數據
• 汽車儀表盤顯示：存儲 LCD 或 LED 指示器的段數據
• 工業 PLC I/O 模塊：緩衝和鎖存傳感器輸入以供處理
• 電信路由器：在更新期間保持路由表條目
• 醫療成像設備：鎖存超聲或 MRI 系統中的像素數據

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY74FCT841CTQC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
